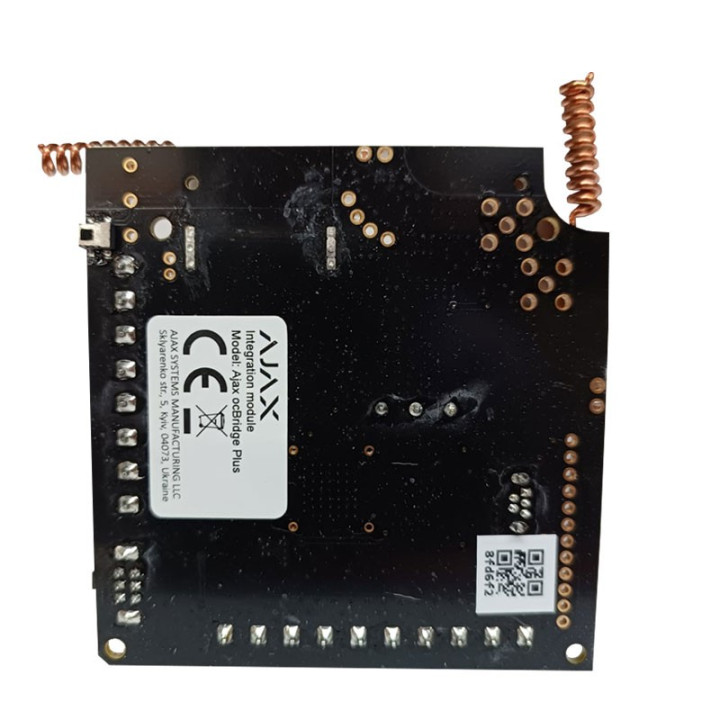

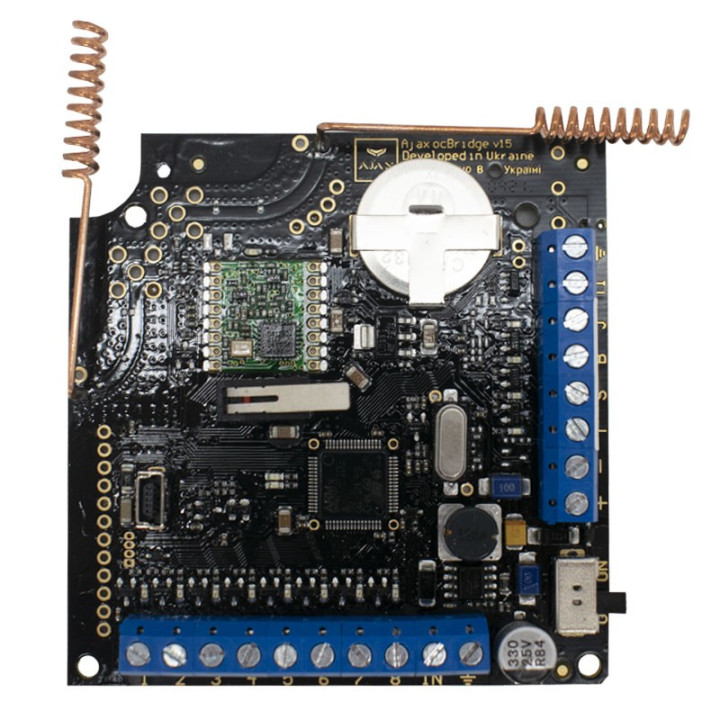

Ajax ocBridge Plus Wireless Sensor Receiver Module

Name: Ajax ocBridge Plus Wireless Sensor Receiver Module
Brand: Ajax System
SKU: 08T 38202
Price: 61.51 EUR
Availability: InStock

€61.51

Tax included

The Ajax ocBridge Plus is a universal receiver designed to connect Ajax system wireless devices to any third-party wired burglar alarm control panel through NC/NC contact outputs. This module allows existing systems to be modernized with the benefits of Ajax radio technology, without replacing the entire control panel.

Connects Ajax devices to third-party wired control panels
Programmable NC/NO outputs
Active and passive mode operation
Compatible with all Ajax main detectors
Passive mode for energy-saving sensor operation
Two-way radio communication with Jeweller protocol
Extended battery life of connected devices
Easy installation and quick configuration via PC

Available

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Ajax ocBridge Plus: Integrating Ajax devices into wired central units.

The ocBridge Plus wireless sensor receiver is designed to connect compatible Ajax devices to any third-party wired central unit (panel) via NC/NC contacts. The Ajax system has a two-way connection to the sensors that allows it to operate in two modes: active mode and passive mode. When the system is in passive mode, the wireless sensors switch to power-saving mode, which greatly extends battery life.

Sends signals via dry contacts
Operates in pulse and bistable modes
Adjustable via PC configurator
When the detector activates, the device closes or opens the transistor outputs. The wired central unit records events and triggers the alarm
The device allows you to configure the detector, perform radio communication tests and detection area tests using the PC
The device installs inside the wired central unit, in sealed boxes or plastic boxes

Ajax Wireless Devices Supported

Device Name	Category
DoorProtect	Magnetic contact for doors and windows
MotionProtect	Motion detector
GlassProtect	Glass break detector
LeaksProtect	Water leak detector
FireProtect	Smoke and temperature detector
CombiProtect	Motion detector + glass breakage
SpaceControl	Remote control for system control
MotionProtect Plus	Motion detector with thermal interference protection
FireProtect Plus	Smoke, temperature and CO detector

Technical Specifications - ocBridge Plus

General Information

Parameter	Value
Type	Wireless
Uses	For indoor use
Configuration	Via PC configurator
Current firmware	v. 5.57.1.5
Note	If you are unable to connect Ajax-compatible devices, update the firmware with the configurator

Radio communication

Feature	Value
Protocol	Jeweller
Frequency bands	866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz Depends on country of sale
Equivalent radiated power (ERP)	8.01 dBm / 6.32 mW (limit: 25 mW)
Maximum distance with devices	Up to 2,000 m (open field)
Maximum number of connected devices	99
External antenna connection	Available

Security and Diagnostic Functions

Function	Availability
Jamming Detection	Available
Sensor efficiency check	Available
Event logs and alerts	Available
Firmware upgrade	Available
Anti-sabotage tamper	Available (tamper + demolition)
