• Comelit firefighting addressed heat detector 41RCS100

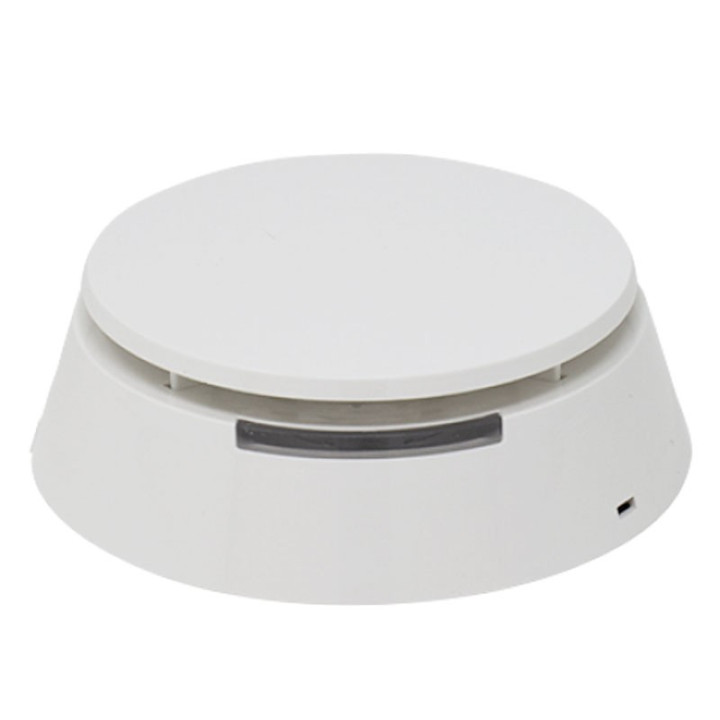

Comelit firefighting addressed heat detector 41RCS100

€40.82
Tax included

Comelit LOGIFIRE series addressed thermovelocimeter fire detector with the following features:

  • Power supply: 16 - 32VDC (Nominal 27VDC)
  • Consumption in communication <290μA@27VDC
  • Nominal (stand-by) power consumption <170uA@27VDC
  • Current consumption in alarm 6.5mA
  • Output in alarm state for remote signaling: 7.5mA@7.5VDC
  • Backward compatibility with ATENA series control panels: yes
  • Sensitivity levels: settable A1R (58º, RoR), A2S (60º), BS (75º)
  • LED indicators: 2, 360° visibility
  • Compliance class: EN54-5 A1/R, A2/S
  • 41RBX020 compatible base (to be purchased separately)
  • With isolator

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

The 41RCS100 series LOGIFIRE detector is a programmable multifunctional heat detector with built-in isolator. It is capable of detecting exceeding the fixed set threshold or rapid changes in temperature ("rate of rise") as stipulated by the EN 54-5 standard.

Its operation can be programmed to comply with classes A1/R*, A2/S*, B/S. Microprocessor-based digital signal analysis. Quick cleaning of the sensor chamber by intuitive component release.

Revised design suitable for any type of installation even the most aesthetically demanding ones. High-visibility light signals. Automatic or programmer addressing modes. Programmable operating classes: A1/R, A2/S, B/S. Certification according to EN 54-5 and EN 54-17.

Other technical features:

  • Settling time to power supply: 30 seconds.
  • EN standards: EN54-5, EN54-17
  • Degree of protection IP30
  • Type ABS coating materials
  • Product color White RAL 9016
  • Operating temperature: -10/+60
  • Operating humidity (RH max @40°C) (%): 0 ÷ 96
  • Cable cross section for terminals (mm): 0.4 ÷ 2.5
  • Width: 108 mm
  • Height including base: 41 mm
  • Weight: 125 grams

  • Brand
  • Reference
    COE 41RCS100
  • In stock
    46 Items
  • EAN13
    8023903288087

  • Type
    Rate-Of-Rise Heat Detectors
