Comelit addressed module 1 supervised output 41IOM000

Name: Comelit addressed module 1 supervised output 41IOM000
Brand: Comelit
SKU: COE 41IOM000
Price: 70.18 EUR
Availability: InStock

€70.18

Tax included

Comelit addressed module, 1 supervised output, with integrated on-board isolator, with the following features:

Supply voltage 15÷32VDC
Stand-by consumption 0.27mA
Rated absorption 270uA@27VDC
Absorption with 1 LED on 3.6 mA
Maximum output current(s) 0.75A@28VDC/0.5A@120VAC
No. relay output(s) or No. monitored output(s) 1
Degree of protection IP21
Isolator Yes
Standards EN EN54-17, EN54-18
Dimensions: Height 80mm - Width 142mm - Depth 45mm
Type ABS cover materials
Product color White, transparent cover
Weight: 230 grams
Operating temperature: -10/+60°C
Cable cross section for terminals (mm) 0.4 ÷ 2.5mm

Available

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

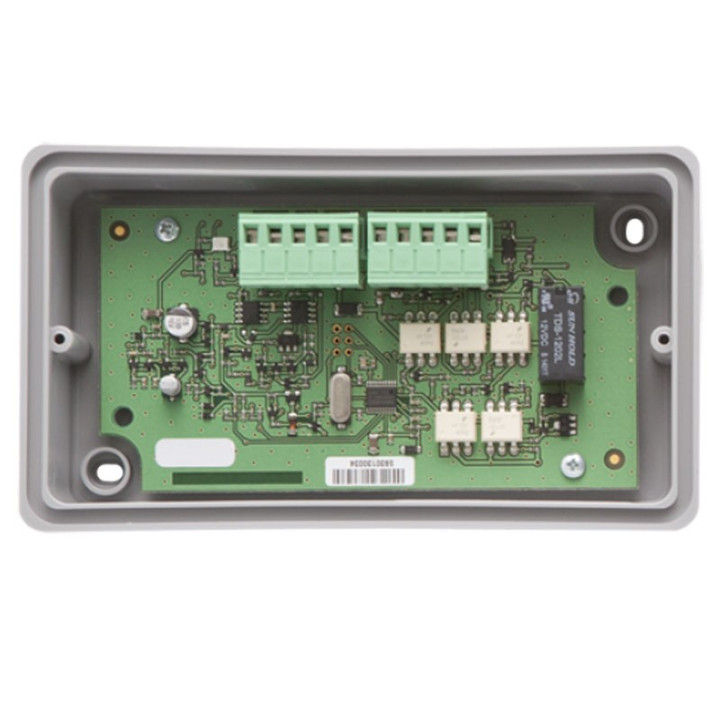

Address module 41IOM000, with built-in on-board isolator, controls a voltage output for controlling optical acoustic devices, electromagnetic stops, etc., with separate power supply. Terminals for 24V utilities and out 24V max. 750mA separate. It is loop-powered and controlled by the control panel by means of the communication protocol. The module is supplied in a plastic case suitable for wall mounting equipped with a transparent cover for easy visual inspection. Certified according to EN54-17 and EN 54-18.
