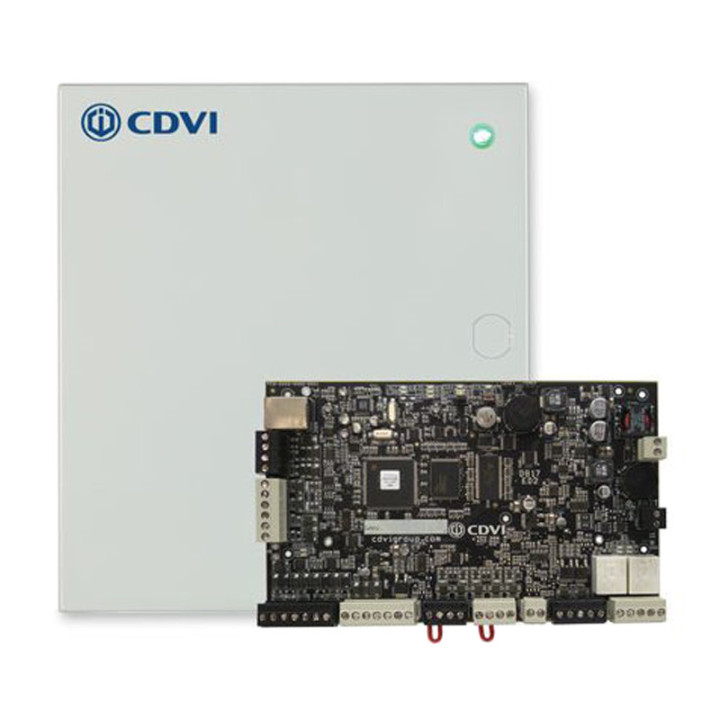

Web Access Control Unit CDVI Hybrid A22

A Hybrid plant A22 ATRIUM Access Control is one of the most efficient Web-based IP present in the market. The flexibility of the a22 allows you to parametrizzarla in the Master or in the Central slave ( 2-in-1 ). The Web server Embedded ATRIUM is innovative, fast, simple and secure. From any part of the world you are in you are able to interact with the system, checking; Users,/Badges, Open/Close gates and view all events. The Web Server Embedded allows you to get all the information by using any Web Browser, Smartphone or tablet.



Features:

• Unique product for the 2 solutions ( Central and/or Expansion, PoE+ ( optional )
• Managing up to 500 access points, 10,000 users ( badges)
• Integrated with all previous installations ( AC22 / AX22 )
• Manage up to 2 readers (ENT/USC or the 2 ENT )
• Universal power supply built-in ( 120Vac / 240Vac )
• Fast and simple procedure for the memorizzazone of the badges
• Auto-detect hardware modules
• 2 relay Output NC/NO to control locking devices 5A/28Vdc external power supply
• Management of up to 6 digital input
• Internal power supply locks ( max 0.75 A /12Vdc each )
• Firmware updates online in less than 10 scondi
• Management and control Software for the PC-WEB-Smartphone-Tablet-inclus
• Maximum distance 1200mt connection, 4-conductor RS485 between central A22 and Master A22 and Slave
• Management readers Wiegand 26-30-44 bits
• Includes management software, Access Control
• Management CCTV-Alarms-E-mail
• Housing dimensions (H x W x D): 298 x 285 x 78mm
• Card PCB dimensions (W x H): 202 x 124mm
• Management lifts.

Functions:

• Software updates via the web interface
• System of locking and unlocking of emergency (PPMS)
• Ability to search for users or areas
• Import / export of users (badges) to CSV,XLS,XML,TXT
• Detection automativo of the central master and slave interface modules
• Simple and quick learning process of the badges
• System with automatic reset
• Compatible with the formats Wiegand (26, 30 and 44 bits) and ABA Track II
• SDK optional
• Integration SDK (optional).
