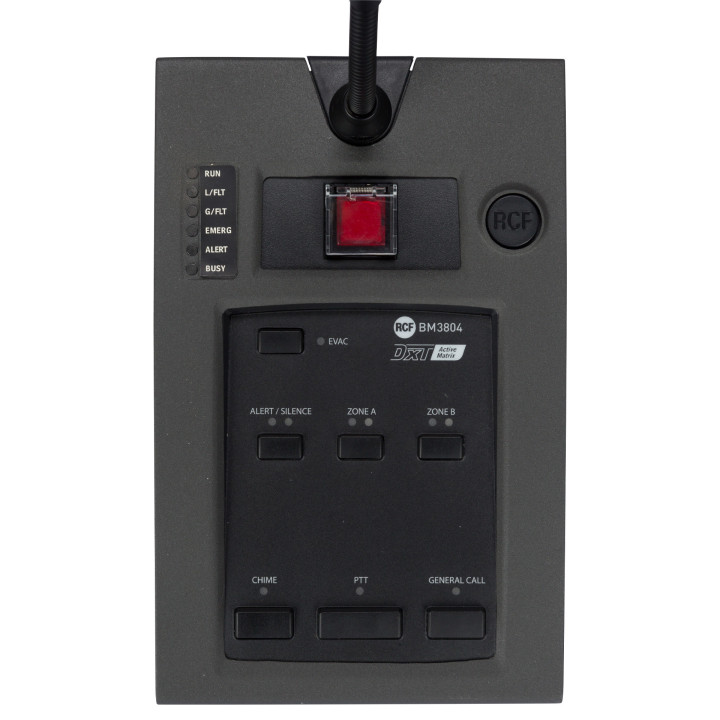

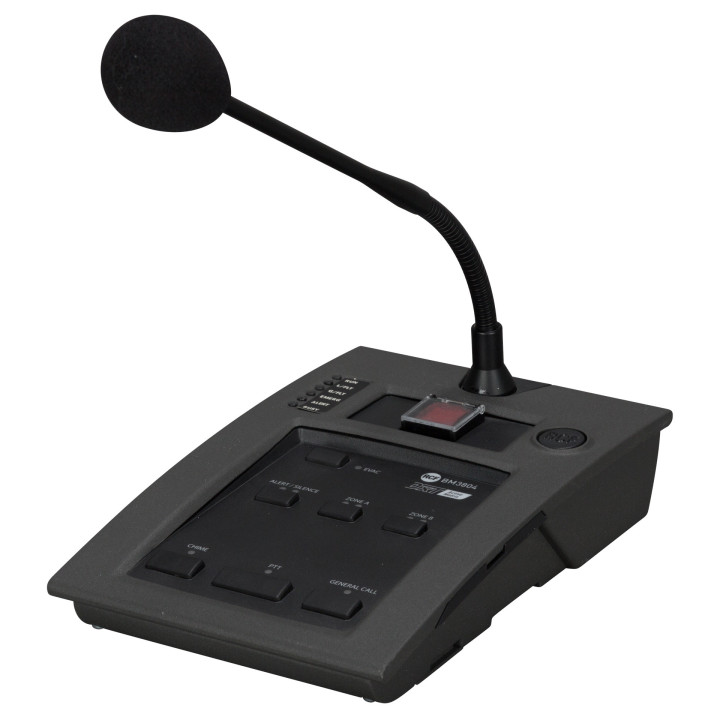

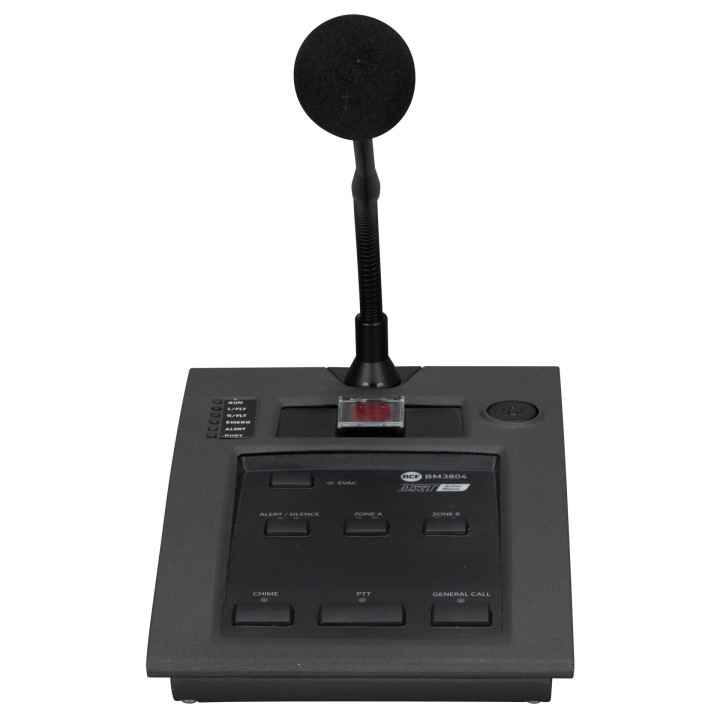

RCF 3804 Desktop Microphone Base 14380028

BM 3804 is a desktop emergency microphone base dedicated exclusively to the DXT 3000 voice alarm system and can be used for both live announcements and pre-recorded message activation.




It features full self-diagnostic and system status reporting capabilities in accordance with EN 54-16:2008. Up to four bases can be cascaded on the line, the first of which is equipped with the emergency features and powered directly from the master unit, while the others require local 24V DC adapters.




Benefits:

• Live emergency announcements
• Activation of prerecorded messages
• Comprehensive self-diagnosis
• Power supply via master unit
• High-quality cardioid microphone
• Rugged metal body




Other technical features:

• Output impedance (ohms): 470.00 ohms
• Console type: emergency
• General call: yes
• Selective call: yes
• Preamplified: yes
• LED indicators: yes

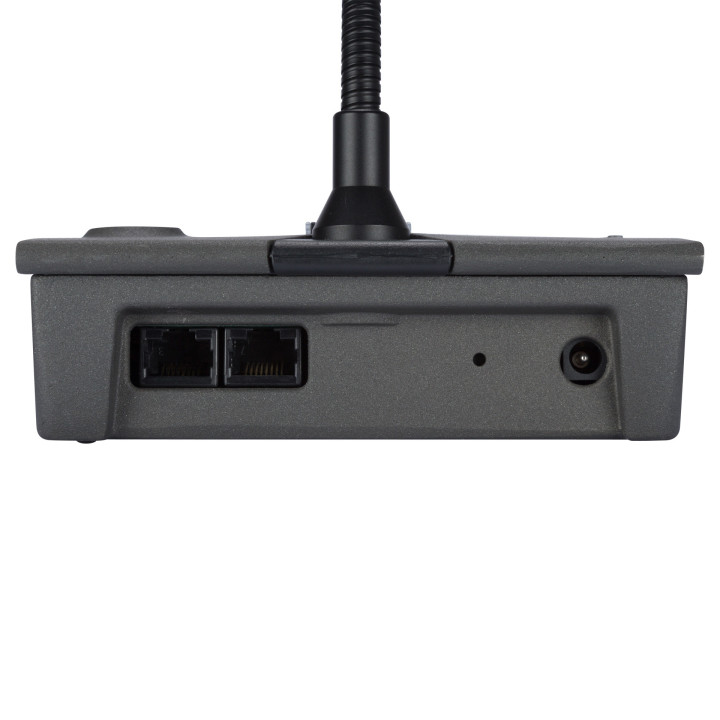

• Connectors: RJ45
• Cable: J-Type fire-rated
• Daisy-chain: yes
• Maximum number in daisy chain: 4
• Interlocking: yes
• Functionality: priority and Din-Don generator
• Weight: 1.2 kg
