RCF microphone base with column for ES3323 14322012 BM 3003

€261.21
Tax included

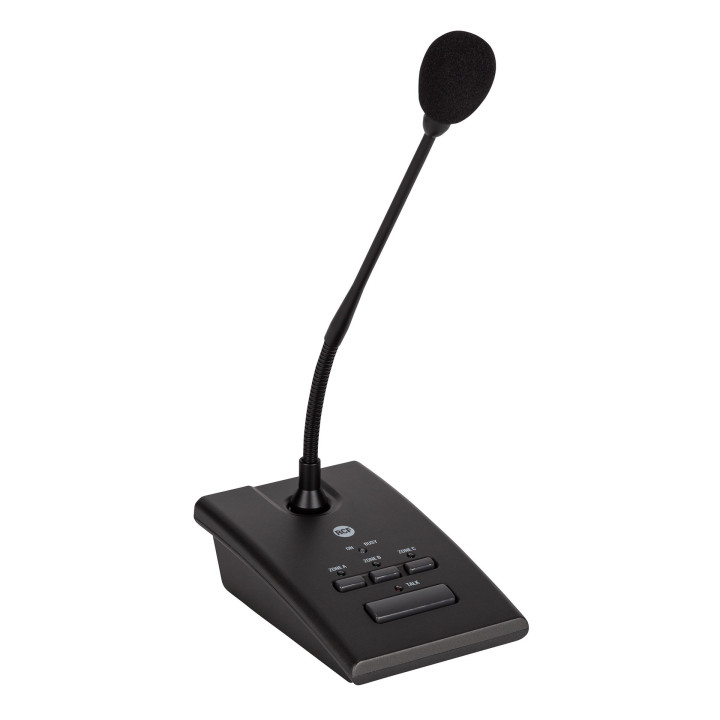

Announcement microphone base with RCF 3-zone selection, with the following characteristics:

  • Rated output voltage @3.3 kohm (mV RMS): 100.00 mV RMS
  • Power consumption (mA): 2.80 mA
  • Type/model: tabletop with electret capsule
  • Directivity: Cardioid
  • Sensitivity (dB): -65 dB
  • Frequency Response (-3dB): 50 Hz ÷ 18 kHz
  • Minimum Load Impedance (ohms): 470.00 ohms
  • Console type: paging

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

It allows selective announcements to 3 zones and is the ideal complement to the RCF ES 3323 mixer-amplifier (with radio tuner and built-in CD/USB-MP3 player).

Inputs 2 and 3 of the RCF ES 3323 amplifier have (each) an RJ45 connector for quick direct connection of a BM 3003 microphone base (via CAT5 cable) or a line consisting of up to 12 BM 3003 microphone bases using one or more additional power supplies.

Strengths:

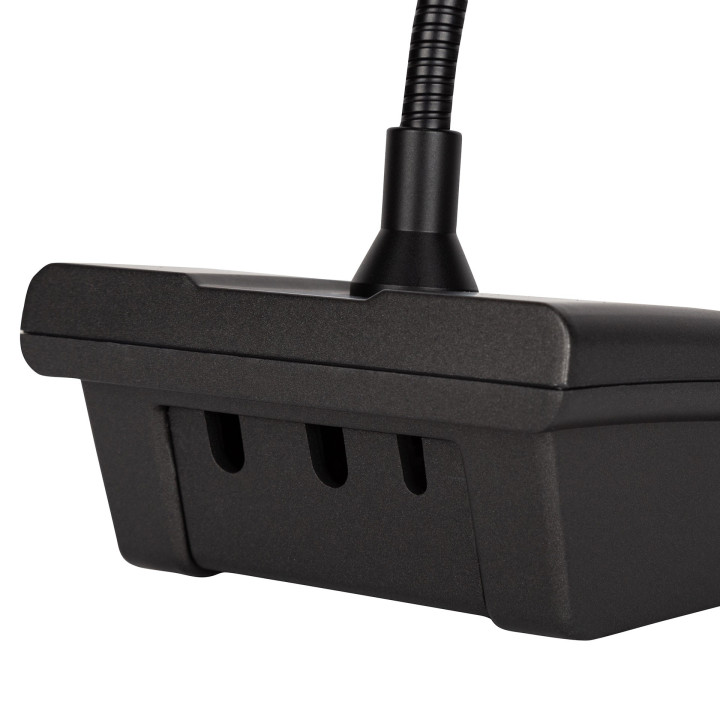

  • Plastic body particularly resistant to impact and chafing, with 300 mm long flexible arm

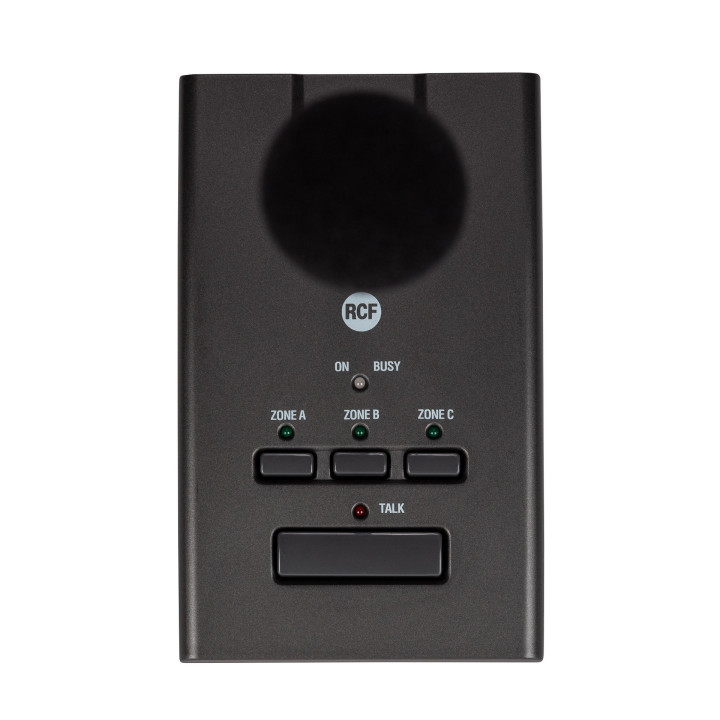

  • Keys for microphone and zone insertion with LED indicator
  • Phantom microphone power supply from 18 to 48 VDC for the first BM 3003 connected ES 3323
  • Prepared for direct connection to ES 3323 amplifiers
  • External power supply to be used from the second BM 3003 microphone base onward
  • 2 Lines consisting of up to 12 BM 3003 microphone bases
  • Polyurethane foam wind cap
  • Cable for connection with amplifier (5 meters long equipped with RJ45 connector)

Other technical features:

  • General call: yes
  • Selective call: yes
  • Number of zones: 3
  • LED indicators: yes
  • Connectors: RJ45
  • With functionality: Smart PTT
  • With cable included, (cable length 5 meters)
  • Conforms to CE mark
  • Body material: plastic

Dimensions and weight:

  • Height: 48 mm / 1.89 inches
  • Width: 100 mm / 3.94 inches
  • Depth: 159 mm / 6.26 inches
  • Weight: 0.73 kg / 1.61 lbs

  • Brand
  • Reference
    MAD 14322012
  • In stock
    4 Items
  • EAN13
    8024530006617

  • Type
    Microphone stands
