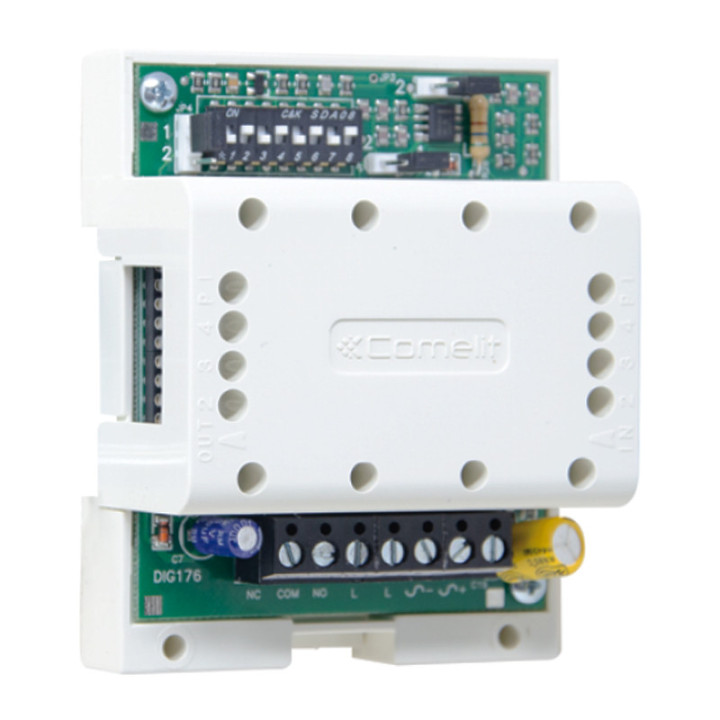

Comelit intelligent actuator relay, designed to control a general-purpose on-board relay, compatible with Simplebus 1 and 2 systems. It allows remote control of electrical devices up to 10A and can be installed on DIN rail, with the following features:
Supply voltage: 12 VAC/20 VDC
Power consumption: 0.6 W
Output type: relay C-NO-NC
Maximum relay current: 10A - 12-24 VAC/VDC
Mounting: 4-module DIN rail
Dimensions: 66x85x35 mm
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
The Comelit actuator relay is fully compatible with the following systems:
Simplebus 1 (audio)
Simplebus 2 (audio/video)

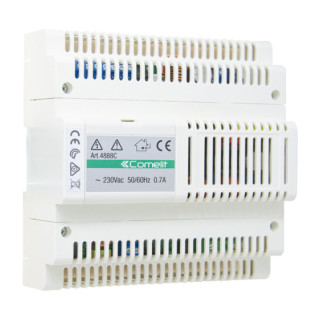

Compatible power supplies: Art. 4888C - Art. 1210 / 1210A - Art. 1209 (for A/V kit)
Due to the versatility of use, it easily integrates into existing video door phone systems, allowing remote activation of electrical devices, lights, gates, locks or any other load within the specified limits.
This actuator relay is designed to simplify the control of electrical loads within the video door phone system. It installs on 35 mm DIN rail and is supplied with branch terminal for the video signal (item 1214/2C), facilitating wiring in centralized systems.
The output consists of a relay with C-NO-NC contacts, suitable for alternating or direct current (12÷24V), up to 10A.
Light or gate control in video intercom systems
Access automation
Activation of general loads up to 10 A
Integration into Comelit Simplebus home automation systems
| Description | Compatibility |
|---|---|
| Audio/video Simplebus 2 with power supply art. 4888C | Yes |
| Audio/video Simplebus 2 with power supply unit art. 1210/1210A | Yes |
| Audio/video Simplebus 2 kit with power supply art. 1209 | Yes |
| Audio Simplebus 2 with power supply art. 1210/1210A | Yes |
| Audio Simplebus 1 | Yes |
| Parameter | Value |
|---|---|
| Power supply type | External power supply |
| Power supply | 12 VAC / 20 VDC |
| Power consumption | 0,6 W |
| Parameter | Value |
|---|---|
| Number of outputs | 1 |
| Type of outputs | Relay (C-NO-NC, 10 A @ 12÷24 VAC/VDC) |
| Parameter | Value |
|---|---|
| Coating material | ABS |
| Color | White RAL9010 |
| Width | 66 mm |
| Height | 35 mm |
| Depth | 85 mm |
| Parameter | Value |
|---|---|
| Operating temperature | -10 ÷ 40 °C |
| Operating humidity (RH max) | 25 ÷ 95% |
| DIN rail mounting | Yes |
| DIN modules | 4 |
