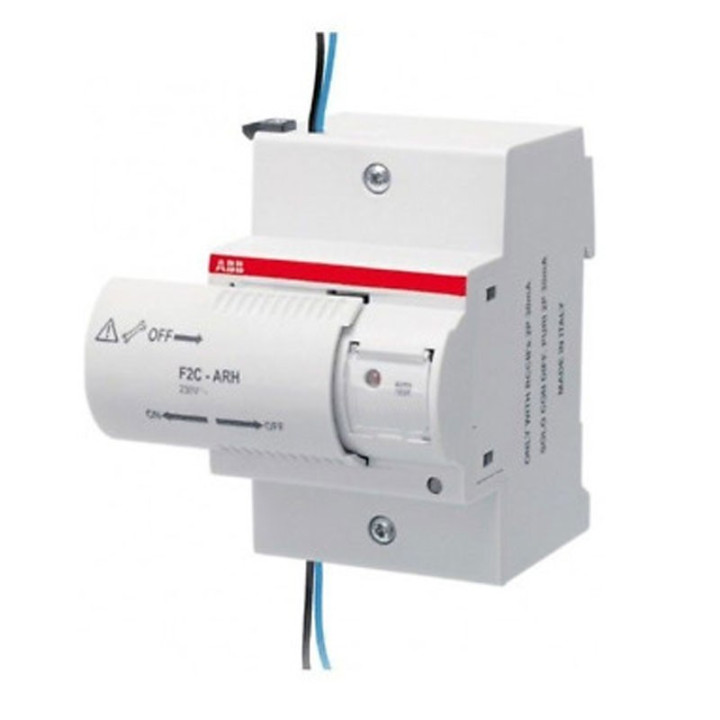

ABB reset device for greenlight differentials F2C-ARH A427324

It allows the automatic closing of the pure residual current circuit breakers (bipolar up to 63A - 30mA) only after checking that there are no faults on the line protected by the residual current circuit breaker. Can be combined with the range of pure earth leakage circuit breakers up to 63A with sensitivity equal to 30mA.



It is a device which allows to reset a residual current device (earth leakage circuit breaker) in case it trips. It must be combined with a pure differential switch.



Characteristics:

• Abb series
• 3 modules
• Voltage 230 Vac (-15% / +10%)
• Number of automatic reclosure attempts 1
• Reset time of the counter number of automatic reclosure attempts 12 sec
• Power consumption during operation (t<0.5s) 20VA max
• Power consumption at rest 0.4W max
• Number of operations ≤ 10,000
• Operating temperature -25 ...+ 55 °C
• Max. cable cross section of break contact ≤ 2.5 mm
• Blocking status signalling contact (terminals 1-2) 1NO (changeover contact)
• Blocking status contact rated current 3A (250Vac)
• Product width 53 mm
• Product height 0.085 mm
• Product depth 0.080 mm
• Product net weight 0.211 kg
