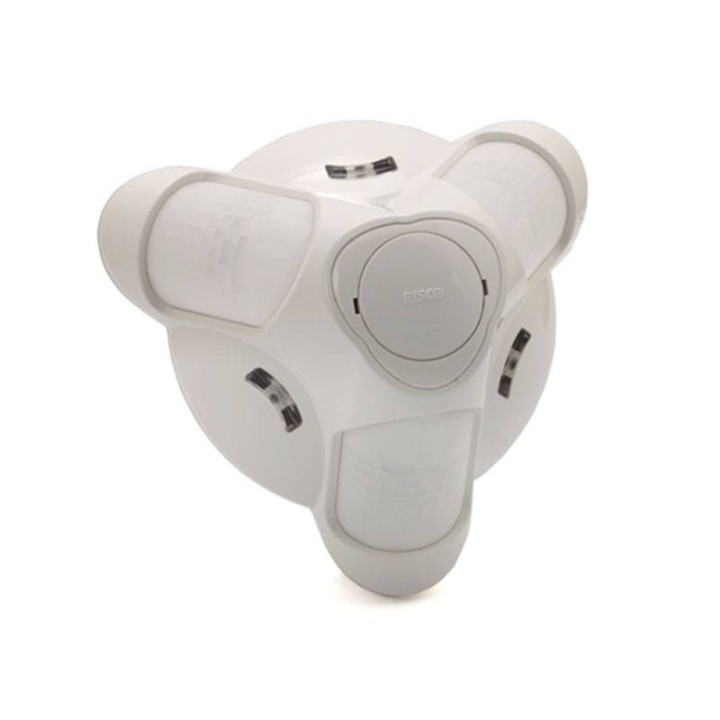

Risco Lunar DT industrial digital ceiling-mounted detector with 360° coverage up to 18 m, dual technology and advanced anti-masking.
Dual technology: microwave + 3 independent infrared sensors
360° coverage up to 18 m diameter
Installation height up to 8.6 meters
Anti-Cloak Technology (ACT)
Active IR anti-masking on all 3 lenses
Green Line for MW deactivation when the system is turned off
Remote diagnostics and calibration or via bidirectional remote control
Triple EOL resistor selectable
3 multicolor LEDs for simplified testing
Can be used as BUS or conventional sensor
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
The Risco Lunar RK200DTG300D is a professional dual technology detector designed for use in large industrial and commercial environments. With its 3 independently adjustable infrared channels and MW channel, it provides customized and reliable coverage up to 18 meters in diameter with ceiling mounting up to 8.6 meters high.
RISCO Bus detector with Anti-Cloak technology
360° coverage for 18 meters in diameter with mounting height up to 8.6 meters (28'')
Active IR Anti-Mask on all 3 PIR channels
Active IR Anti-Mask on all three channels
Built-in triple EOL resistors, selectable via jumper
Remote control and diagnostics via PC software or burglar alarm control panel keypad.
Industrial LuNAR's digital signal processing methods automatically adjust alarm threshold and pulse count verification based on actual intruder behavior and environmental factors, offering the best detection and false alarm immunity available on the market.
Industrial LuNAR's mounting height, installation method and Anti-Cloak technology, which solves the problem of reduced PIR detection caused by high temperatures, make it an ideal solution for warehouse installations.
RISCO Bus technology dramatically reduces the cost of wiring, installation equipment and labor, while also offering the benefits of remote services.
Anti-Cloak Technology (ACT) detects circumvention attempts such as sudden temperature changes or hidden heat sources. Active IR anti-masking on the three lenses protects the sensor from attempts to obscure it with tape or spray, making it ideal for high-risk contexts.
The Green Line function automatically turns off the microwave when the system is turned off, reducing power consumption and environmental interference. In addition, the unit can be tested or calibrated remotely via remote service software or two-way remote control, simplifying maintenance and configuration.
Compatible with RISCO systems, it can be used either as a BUS sensor or as a conventional wired sensor, with triple EOL resistance easily configured via jumpers. The 3 colored LEDs make it easy to verify detection and operational status during installation.
| Feature | Detail |
|---|---|
| Coverage | 360° by 18m diameter with 192 areas divided into 3 Fresnel lenses. Each lens has 4 vertical positions. |
| Mounting height | Variable from 2.7 m to 8.6 m |
| Detection method | Dual technology (PIR + MW) with Anti-Cloak™ technology |
| Green Line™ | Yes |
| Anti-masking | 3 active IR channels |
| EOL resistors | Built-in triple EOL |
| Temperature compensation | Yes, real |
| Power supply | 9 to 16 VDC |
| Current consumption | 20 mA at 12 VDC, 30 mA at 16 VDC, max 40 mA with all LEDs on |
| Optical filter | Pigmented screen on PIR element against white lights |
| RF immunity | 40 V/m from 10 MHz to 1 GHz |
| Operating temperature range | -20°C to +55°C |
| Storage temperature | -20°C to +60°C |
| Dimensions | 99 mm x 194 mm |
| Compliance | RED Directive 2014/53/EU |
