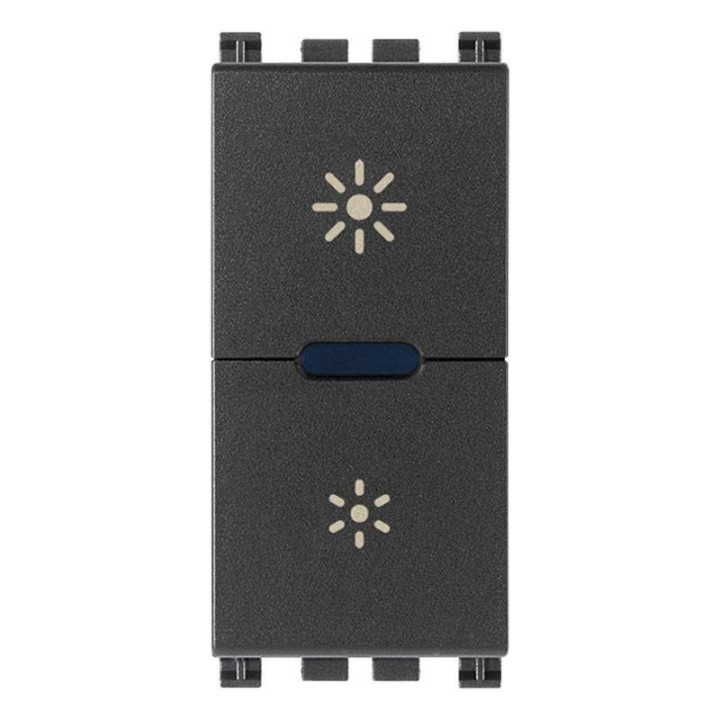

Vimar Arké Master Dimmer is designed to offer precise control of light intensity on a wide range of light sources. With its phase-cut technology and Master function, it is an ideal solution for advanced residential installations or professional environments, with the following features:
230V universal dimmer for LED, CFL, incandescent, electronic transformers
Master function compatible with module 19137
Minimum light intensity adjustment and built-in ON/OFF function
Control from built-in pushbuttons or multiple points (NO)
Illuminated indication for detection in the dark
Dull grey colour, recessed mounting, click attachment
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
This dimmer supports loads from:
40400 W for incandescent lamps
40300 VA for electronic transformers
10200 W for CFL lamps
3200 W for LED lamps and LED phase cut ballasts
Versatility that allows it to be used in different contexts and with different lighting technologies.
The dimmer can be controlled via built-in pushbuttons or from multiple points with normally open (NO) pushbuttons, allowing convenient and flexible use even in environments with multiple accesses. It also includes direct on/off (ON/OFF) function.
Minimum brightness level can be adjusted, avoiding flickering and ensuring consistent visual comfort even at low intensity. Dark detection function via indicator light makes it easy to locate even in dimly lit environments.
The device installs via click-fix, screw-clamp connection and is compatible with Vimar Arké series holders. The 1-module format and matte gray finish ensure perfect aesthetic integration with the other devices in the series.
| Feature | Value |
|---|---|
| Load type | Universal and LED retrofit |
| Control | Built-in or remote buttons (NO) |
| MASTER function | Yes (for module 19137) |
| Functions | ON/OFF, bright dimming, minimum dimming, dark detection |
| Mounting | Recessed |
| Mounting | Click |
| Connection type | Screw Clamp |
| Material | Plastic |
| Surface | Matte |
| Colour | Grey |
| Protection Class | IP40 |
| Rated voltage | 230V - 50 Hz |

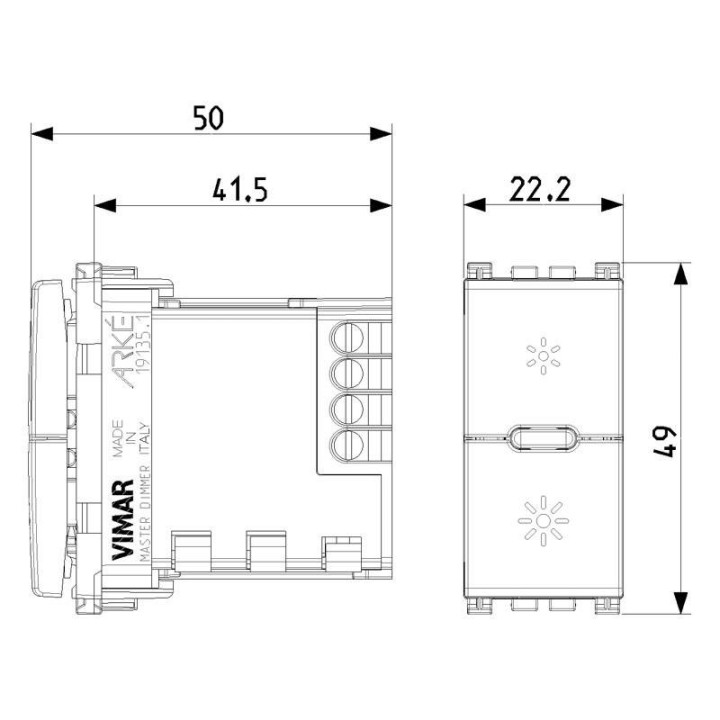

| Dimensions | 22.3 mm (W) × 49 mm (H) × 50.7 mm (D) |
| Cannot be installed in | Isoset enclosures |
