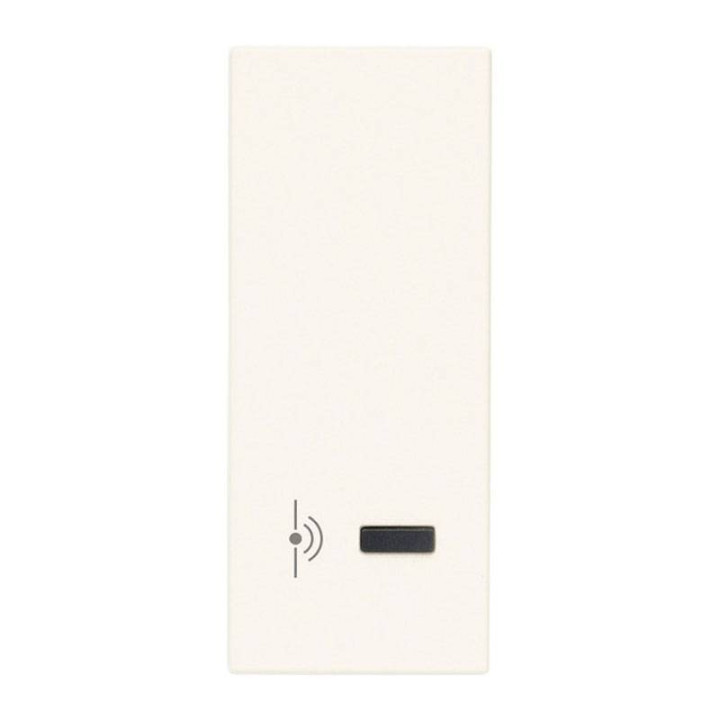

Vimar Linea IOT Smart Radar Sensor 1 Module White 30179.B

Name: Vimar Linea IOT Smart Radar Sensor 1 Module White 30179.B
Brand: Vimar
SKU: VIW 30179.B
Price: 114.52 EUR
Availability: InStock

€114.52

Tax included

Vimar Linea Radar UWB Sensor Smart IoT technology on Bluetooth 5.0 standard for realization of VIEW Wireless mesh system:

1 solid-state output for ultra-low voltage commands (SELV and non-SELV)
1 input for external button for output activation or scenario recall
Power supply 100-240 V 50/60 Hz
1 module
Color white RAL 9016

It is capable of detecting presence with extreme accuracy. The device has an input for external wired contact that can be configured to control relay activation or to activate scenarios in the View Wireless system.

To be applied only to Vimar Linea series frames codes: 30613/30614/30617.

Available

Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

The front button initiates configuration with the View Wireless lApp, and the LED signals the status of the relay. The device has the gesture function that activates a scenario or forces the relay by activating the Twilight function. Prolonged presence within the detection area can enable the sending of a notification and/or the activation of the relay.

Features:

Current rating 0.40 A
Connection type Screw terminal
Compatible with Amazon Alexa
Compatible with Apple HomeKit
Material Plastic
Max power consumption from mains: 1.1 W
Output contact: 24 Vac or 30 Vdc, 400 mA max (SELV and ELV), not suitable for controlling electro locks
Bluetooth technology: - Transmitted RF power: < 100mW (20 dBm) - Frequency range: 2400-2483.5 MHz
UWB radar: - Transmitted RF power: < 1mW (0 dBm) - Frequency range: 7.3÷8.5 GHz
Ambient light sensor for twilight function (4 thresholds selectable by App)
Front button for configuration/reset and manual forcing (in configurations where this mode is allowed)
RGB LED indicating output status (settable from View Wireless App) and configuration status
Operating temperature: -10 to +40 °C (for indoor)

Terminals:

2 terminals (L and N) for line and neutral
1 terminal (P) for connection to remote wired control (e.g. button art. 30008-20008-19008-16080-14008) or for DND signaling via two-pole switch 20015.0-19015.0-14015.0+ XX026.DND+ 00936.250.X in case of relay crossover with out-of-door reader xx462. The maximum distance between IoT device and pushbutton is 50 m with cable of minimum cross-section 1.5 mm2
2 terminals (OUT) for potential-free signal relay output for SELV and ELV circuits.
