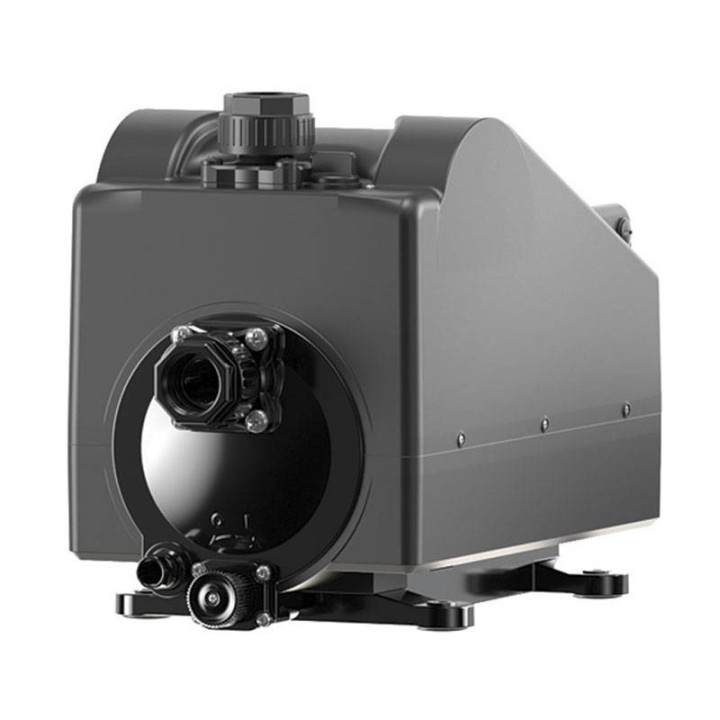

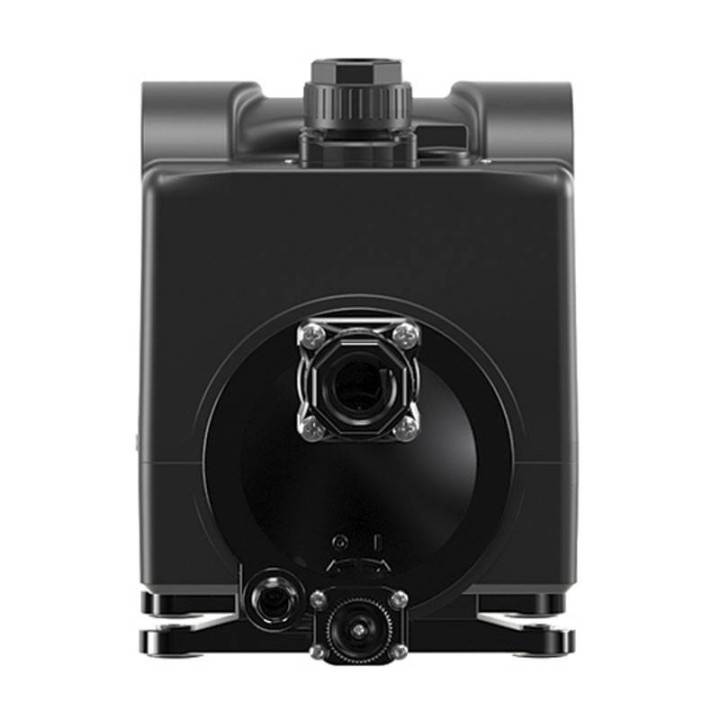

Ebara Hydrostation Bluetooth electronic pressure set

€597.14
Tax included

Ebara Hydrostation Bluetooth Electronic pressure set with inverter is the new IE5-efficient electronic constant pressure water supply system, an innovative compact autoclave pump, complete with full functionality without the need for additional accessories and installation tools.



This energy-saving all-in-one system includes:

  • Horizontal multistage pump
  • High-efficiency permanent magnet motor (IE5)
  • Inverter system for water pressurization
  • Integrated check valve
  • Self-priming device (built-in)
  • Anti-water hammer expansion device with opposed springs (maintenance-free)



Applications:

  • Pressurization systems
  • Irrigation and gardening
  • Groundwater withdrawal
  • General clean water handling

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Hydrostation ensures constant pressure regardless of the number of active users, thanks to its speed variation system that reduces consumption and allows significant energy savings. Its quiet operation, only 43dB(A), allows installation even in inhabited or particularly noise-sensitive environments.



Bluetooth connectivity allows programming and monitoring from apps without direct access to the station, ideal for installations in confined spaces. In addition, through the plug and play manifold kit, up to 2 Hydrostations can be connected to increase the flow rate of the pressurization system in exchange or parallel, without the need for installation accessories and tools.



The new system also complies with Ministerial Decree No. 174/2004, the Regulations concerning materials and objects that may be used in fixed installations for the collection, treatment, adduction and distribution of water intended for human consumption.



Remote Control:

Thanks to the Bluetooth® connection, you can control your plant remotely, conveniently and intuitively via the Hydrostation app. Download it from the App Store or Google Play.



Display:

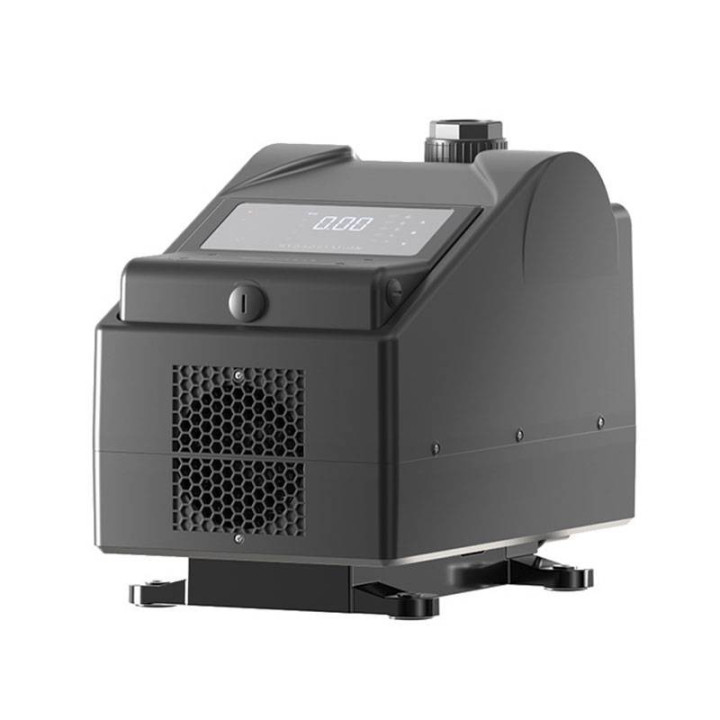

  • Hydrostation's screen offers simple and immediate parameter setting and control. The only thing you'll have to do is set the working pressure.



Quick Connect:

Hydrostation's fittings are designed to allow you to install it by hand without the use of any tools. Once you take it out of the package, all you have to do is plug it into a power outlet and your system piping to get it up and running. Easy no?.




Features:

  • Power 0.8kW - 1.1Hp
  • Max pressure 6 bar - 0.6 Mpa
  • Max flow rate 95 l/min - 5.6 m3/h
  • Max head 60 m
  • Efficiency class IE5
  • Noise level <43 dBA *
  • Max absorbed current 4.6 A
  • Liquid temperature 5 ÷ 45 C°
  • Ambient temperature 5 ÷ 50 C°
  • Connection with GF 1" piping
  • Degree of protection IP65
  • Max ambient temperature +5°C ÷ +50°C
  • Max liquid temperature +5°C ÷ +45°C
  • Max suction depth 6 m
  • Poles 6
  • Degree of protection IP65
  • Voltage Single-phase 1~220-240V ±15%
  • GF connections 1"
  • Pump body Nylon PA6 GF 30%
  • Impeller PPO + GF 20%
  • Shaft Stainless steel AISI 304 (EN 1.4301)
  • Mechanical Seal Graphite/Silicon Carbide/EPDM

  • Brand
  • Reference
    EBA 1545550001
  • In stock
    3 Items

  • Type
    Pressurizing water
