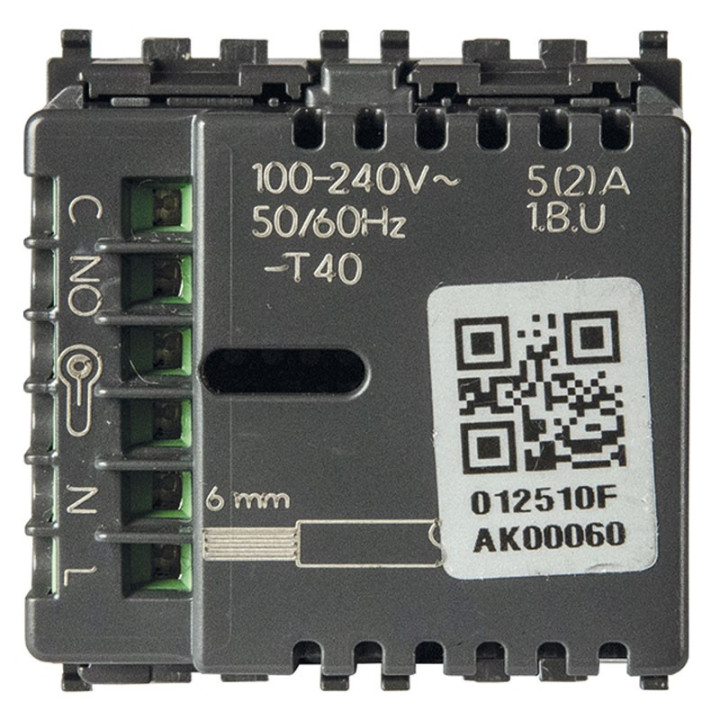

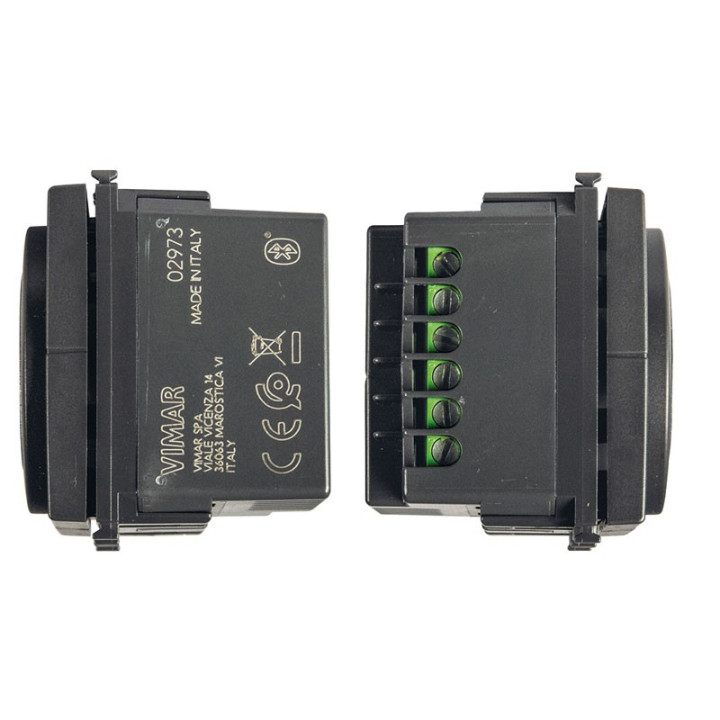

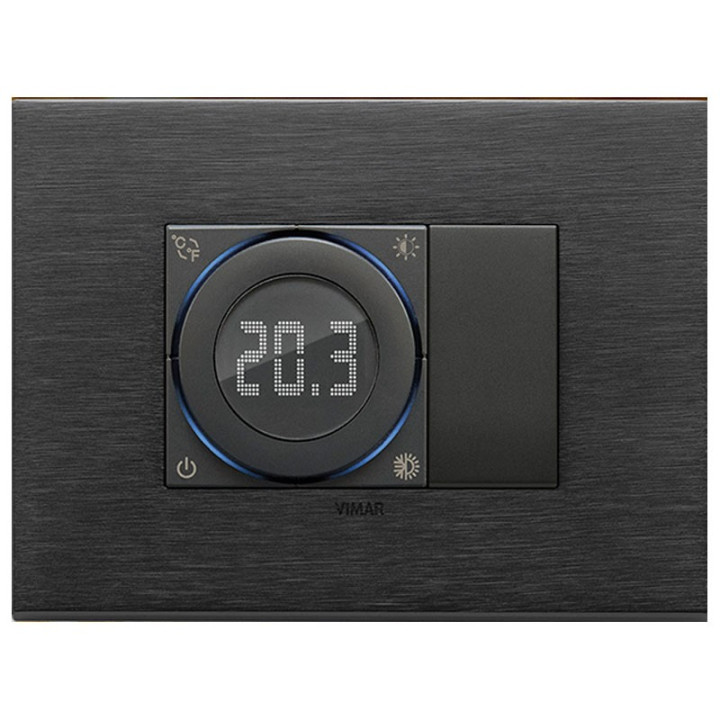

Vimar Wireless connected thermostat IoT2M Gray 02973

Features:

• 1 input for outdoor temperature sensor
• Heating and air conditioning in ON/OFF and PID mode
• Class I temperature control device (1% contribution) in ON/OFF mode
• Class IV (2% contribution) in PID mode
• White LED backlighting with intensity adjustment
• Power supply 100-240 V 50/60 Hz
• White color
• 2 modules
• To be completed with Eikon, Arké, Plana plates
• For Idea installable with dedicated support 16723
• Rated supply voltage: 100-240 V~, 50/60 Hz
• Power dissipation: 0.55 W
• Transmitted RF power: < 100mW (20dBm)
• Frequency Range: 2400-2483.5 MHz
• Maximum length of external sensor connection cable: 10 m
• Use a twisted cable with minimum section of 0.5 mm2 (art. 01840)
• Terminals: 2 terminals (L and N) for line and neutral - 2 terminals for external temperature probe (art. 02965.1 and 20432-19432-14432) - 2 relay terminals C-NO
• Relay output with clean contact: 5(2) A 240 V~
• Adjustable current setpoint: 4°C - 40°C
• Measurement accuracy temp. (integrated probe): 0.5°C between +15°C and 30°C, 0.8°C at the extremes
• Can be used for Heating/Conditioning (winter/summer)
• Operating modes: Automatic, Manual, Reduction, Absence, Protection, Off, Timed Manual
• Temperature control algorithms: ON/OFF or PID configurable
• 4 frontal keys for command and configuration/reset
• RGB LED for signaling configuration status (blue flashing) and output status (configurable color)
• Operating temperature: T40 (0 °C +40 °C) (indoor use)
• Degree of protection: IP30
• ErP classification (EU Reg. 811/2013): - ON/OFF: class I, contribution 1%. - PID: class IV, 2% contribution
• Class II device
• Number of manual cycles: 3,000
• Number of automatic cycles: 100.000
• Type of contact opening: microdisconnection
