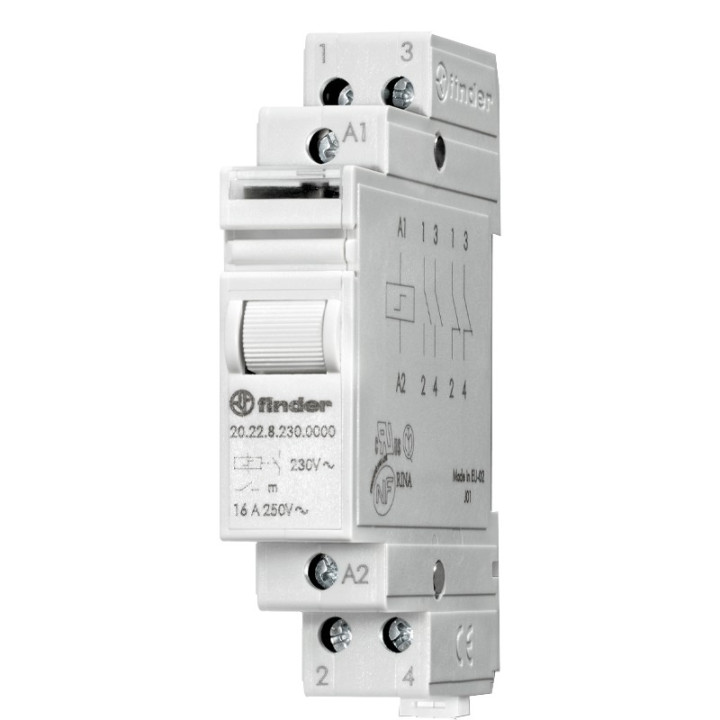

Finder Modular Switch Relay 20228230

Features:

• Finder Series
• Double pole switch
• Rail mounting 35 mm (EN 60715)
• Module width 17.4 mm
• Contact configuration 2 NO
• Minimum switching load 1000 (10/10) mW (V/mA)
• Standard contact material AgSnO2
• Mechanical life AC/DC 300 - 10 cycles
• Electrical life at rated load in AC1 100 - 103 cycles
• Min./Max. control pulse duration 0.1 s/1 h (according to EN 60669)
• Insulation between coil and contacts (1.2/50 μs) 4 kV
• Ambient temperature -40...+40°C
• Protection class IP20




Lamp capacity

• incandescent/halogen 230 V W 2000
• fluorescent with electronic ballast 1000W
• fluorescent with electromagnetic ballast 1750W
• CFL 400W
• LED 230 V 400W
• halogen or BT LED with 400W electronic transformer
• halogen or BT LED with electromagnetic transformer 8000W




Advantages:

• Test button and mechanical indicator
• 7 sequences available
• AC or DC coil
• Identification card
• According to EN 60601-1 2 x MOPP
• Connection with illuminated pushbuttons possible via adapter 026.00
• Cadmium-free contacts
