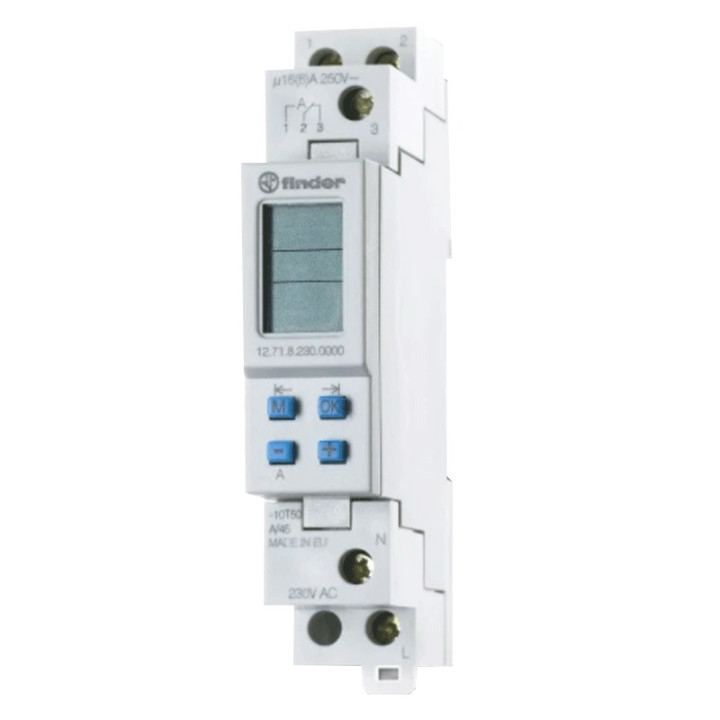

• FINDER DIGITAL TIME SWITCH 1 MODULE

Finder digital time switch 1 module 12718230

€89.85
Tax included

Finder digital electronic/weekly switch, with the following features:

  • Nominal supply voltage 120 - 230V AC (50/60 Hz) - 24V AC/DC
  • Nominal/Max switching voltage 250 Vac
  • Nominal power VA (50 Hz) 1.4/1.4 2W
  • Operating range AC (50 Hz)(0.9...1.1)UN(0.85...1.1)UN in DC (0.9...1.1)UN
  • Rated current/Max instantaneous current 16/30A
  • Rated load in AC1 4000 VA
  • Rated load in AC15 (230 V AC) 420 VA
  • 1 module

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Features:

  • Finder Series
  • 1 changeover contact 16 A
  • Dimensions: width 17.6 mm
  • 35 mm bar mounting
  • Minimum switching load 1000 (10/10) mW (V/mA)
  • Standard contact material AgNi
  • Electrical life at nominal load in AC1 50 - 10 cycles
  • Type of weekly programming
  • Memories 30
  • Minimum programming interval 1 min
  • Programming interval/day 96 - 24 (168/week)
  • Minimum programming interval min 15...60
  • Accuracy s/day 0.5
  • Ambient temperature -30...+55C
  • Degree of protection IP20


Lamp capacity

  • incandescent (230 V) 2000 (NO contact)
  • fluorescent with power factor correction (230 V) 420 (NO contact)
  • fluorescent not rephased (230 V) 1000 (NO contact)
  • halogen (230 V) 2000 (NO contact)

  • Brand
  • Reference
    FIN 127182300000
  • In stock
    3 Items
  • EAN13
    8012823274386

  • Type
    Time Switches
  • Version
    Digital
  • Model
    Weekly
