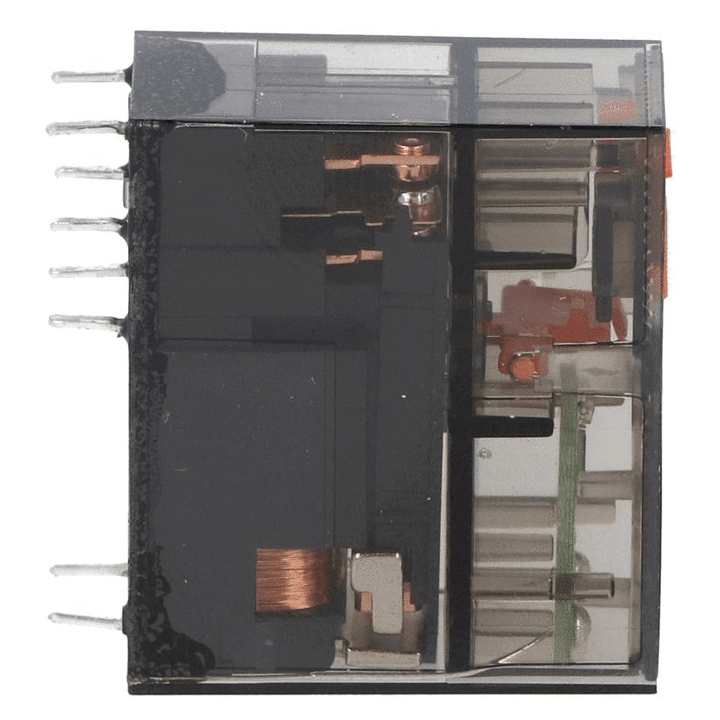

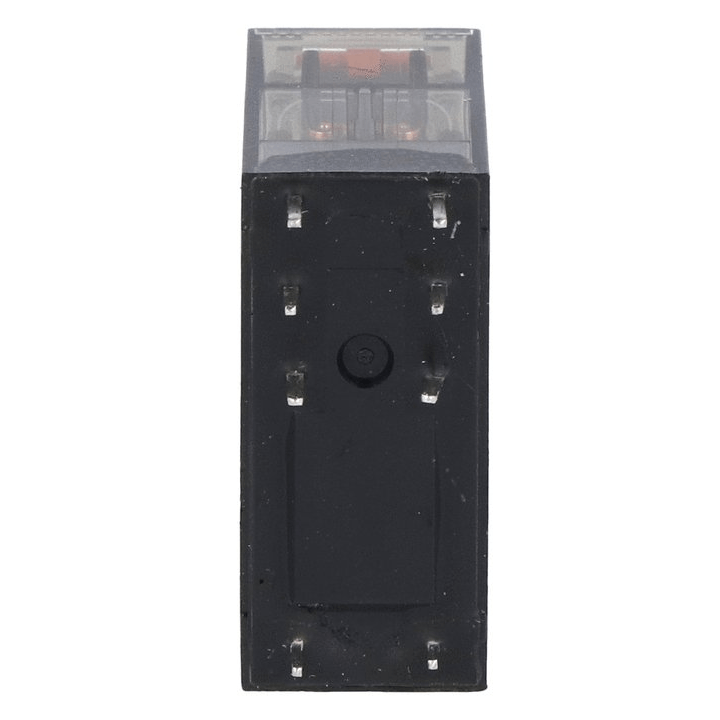

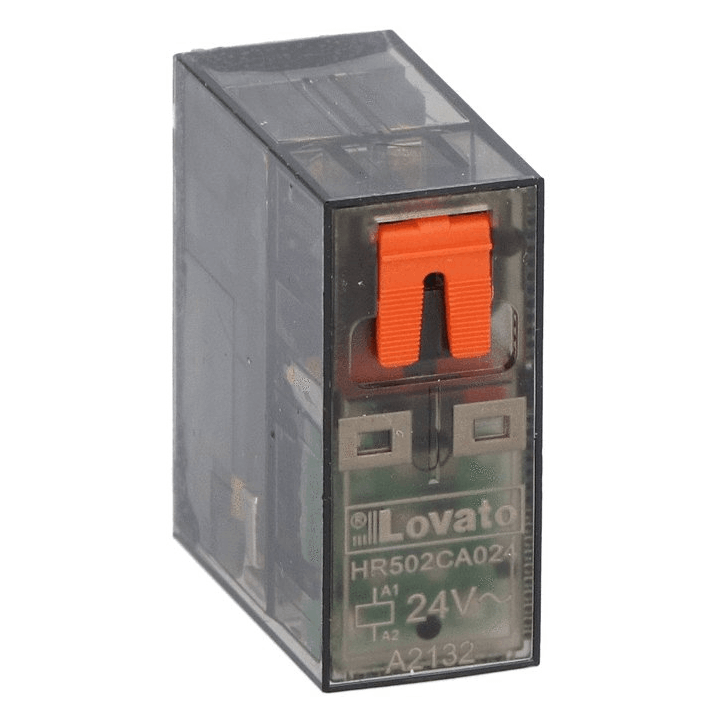

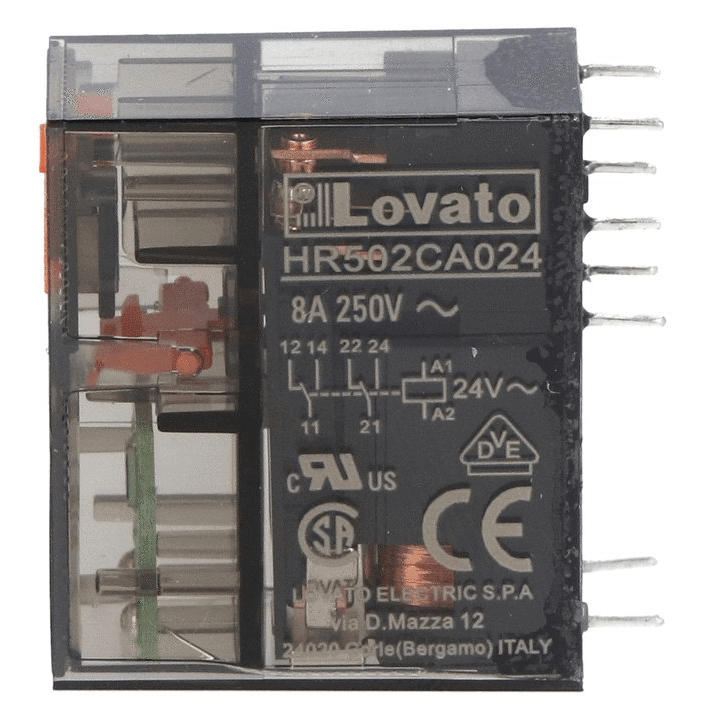

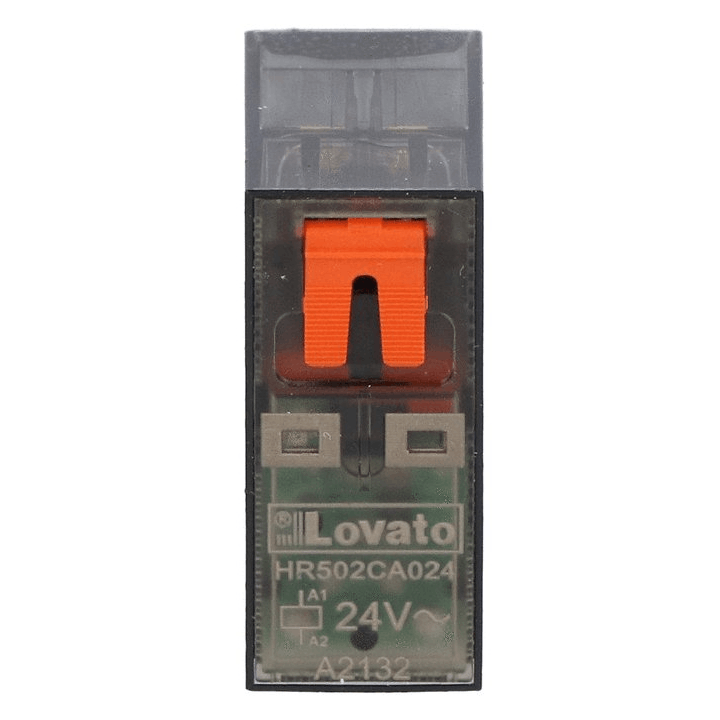

Lovato Mini Relay 8A 2 Switches 24VAC + LED HR502CA02424

Rated operating current DC-1:

• 30V UN 8
• 110V UN 0.3
• 220V UN 0 .1



Coil characteristics:

• Average AC coil consumption at 20°C: VA 1
• Average DC coil consumption at 20°C: 0.4W
• Operating range: Closing % UN 70...110 - Opening % UN 20...55
• Maximum cycle frequency: cycles/h 3600



Conductor cross-section:

• AWG/Kcmil: Min 20 - Max 14
• IEC: Min mm² 0.5 - Max mm² 2.5



Other technical features:

• Maximum controllable power: AC-1 2000W, AC-15 150VA
• Rated operating power AC-1: 2000VA
• Rated operating power AC-15: 230V AC, 150VA
• Minimum switching load: V/mA 5/100
• Contact impedance: Mω 100
• Contact material: Ag/Ni
• Operating times: Closing SM <15 - Opening SM <15
• Mechanical life: cycles 10000000
• Electrical life AC1: cycles 50000
• Maximum tightening torque terminal socket: Nm 0.6
• Allen screw tightening tool (cross/flat blade): PH1 / 4.5 mm
• Operating position: normal any, 35mm DIN rail mounting and with screw
• Operating temperature: -40/+70°C
• Storage temperature: -40/+85°C
• Indication: yes
• Mechanical contact position indicator: yes
• Mechanical test actuator: yes
