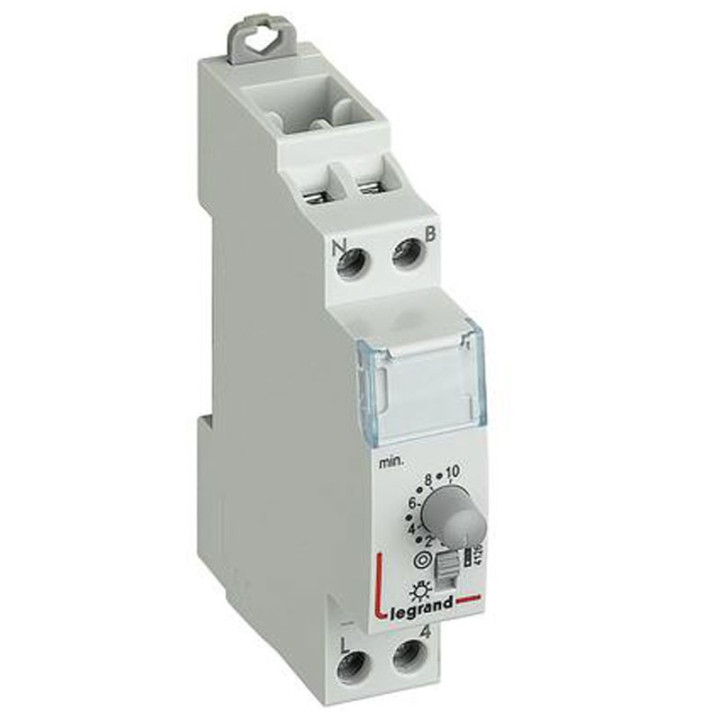

Legrand AlphaRex 16A 230V staircase light timer 412602

Optimized lighting control with Legrand staircase light timer

The Legrand AlphaRex staircase light timer is designed to automatically manage the switching on and off of lights in stairwells, corridors, or other walkways. With an adjustable interval from 0.5 to 10 minutes, it allows you to optimize energy consumption, preventing lights from staying on unnecessarily.

Compatibility with all lamp technologies

One of the most appreciated features of this timer is its high versatility of use: it supports incandescent (up to 3680 W), halogen (2000 W), compensated fluorescent (1000 VA), CFL (1000 VA), and energy-saving lamps (1000 W). It is particularly suitable for modern installations using compact fluorescents or LED lamps, due to compatibility with capacitive loads up to 70 µF.

3- or 4-wire operation with automatic recognition

The device automatically recognizes the system configuration (3- or 4-wire), adapting to different installation solutions without the need for complex modifications. This feature makes it ideal for both new installations and retrofits on existing systems.

Simple and flexible control management

The timer allows the connection of an unlimited number of non-illuminated buttons, or up to 50 illuminated buttons with a 1 mA neon lamp. It also has a permanent on function, which is useful in settings where it is necessary to keep the light on for an extended period.

Easy to install on DIN rail

1 Din Module, easily installed inside standard electrical panels. With its compact design and sturdy construction, it is a reliable choice for installers and designers looking for durable solutions that comply with current regulations.

Ideal applications

• Condominium staircase lighting

• Corridors and common walkways

• Technical areas and service rooms

• Residential and tertiary installations

• Centralized installations with push-button control



Technical Characteristics Light Timer
