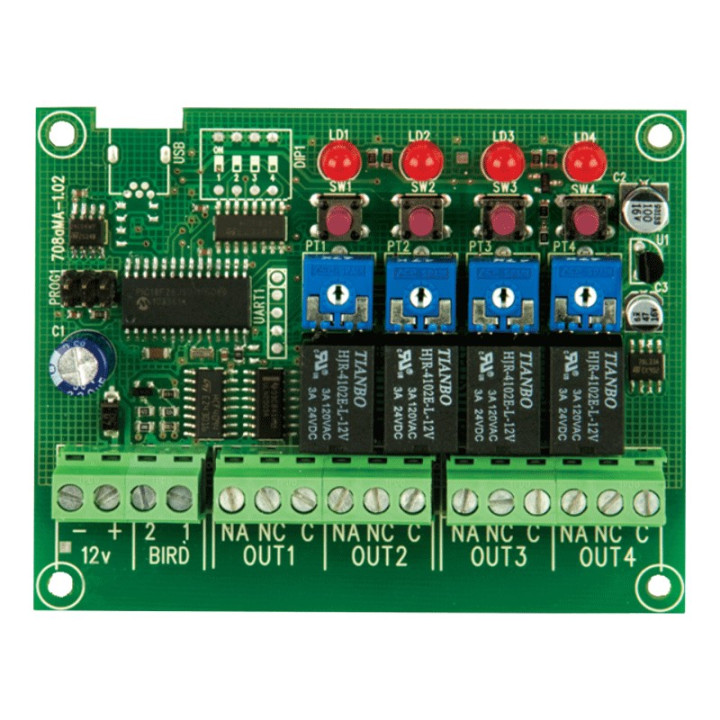

Hiltron DX4000 four-channel rolling code decoder card

The DX4000 is a four-channel rolling code decoder associated with the BIRD receiver antenna equipped with four output relays driven by the four buttons (channels A, B, C and D) of the QUAD remote control. It can program from 1 to 1400 QUAD remote controls.

Features:

• Rolling-code encoding (over a million possible codes)
• Operation with 4 programmable relays monostable/bistable
• Rated supply voltage 12V
• Absorption 25mA at 12v (with BIRD connected)
• Maximum absorption 110mA @ 12Vdc
• Relay output 4 C/NA/NC 1A
• Maximum number of users 1400
• Dimensions: width 87 mm - height 62 mm
• Display of stored codes
• Self-learning of new codes directly from the remote control
• Monostable timing up to 90 seconds
• Absorption in standby with BIRD connected 25mA at 12V
• LED signalling of active outputs



Installation method:

Use a two-conductor cable + shield (type 2S) to connect the BIRD antenna to the DX4000 terminal block, respecting connections "1" and "2". It is recommended not to run this cable to the BIRD antenna together with other cables.
