Faac PracticalKit 746C Safe for sliding gate 600Kg 230V

Faac PraticoKit 746 C Safe sliding gate automation kit - complete and safe

The Faac PraticoKit 746 C Safe is designed for the automation of sliding gates weighing up to 600 kg. The heart of the system is the oil-bath 746 C gear motor, which is reliable, quiet and durable even under heavy use. Thanks to constant lubrication, it ensures a long operating life and optimal resistance to stress.

The gearmotor has been revamped with an integrated E781 electronic control board that features adjustable speed control levels. It includes two dedicated inputs for safety ribs (NC or 8.2 KOhm) and Bus2Easy technology.

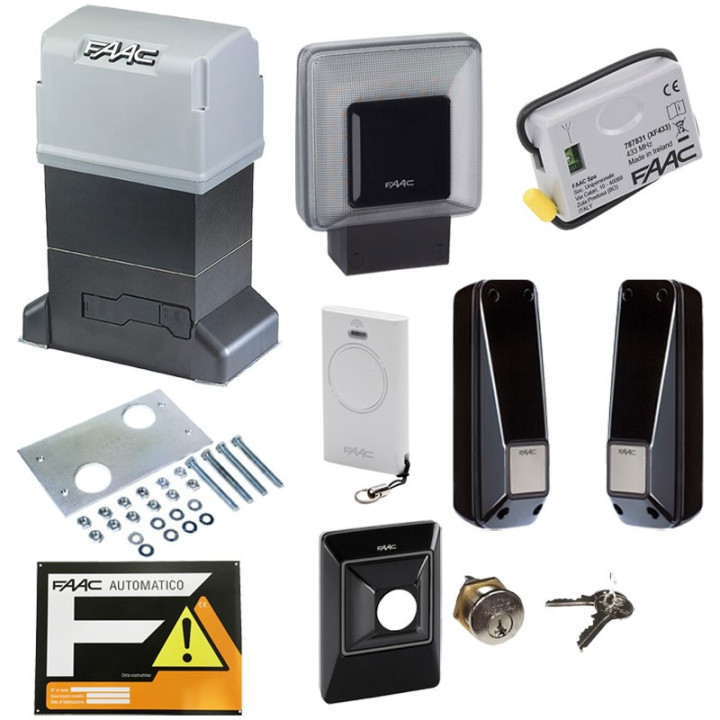

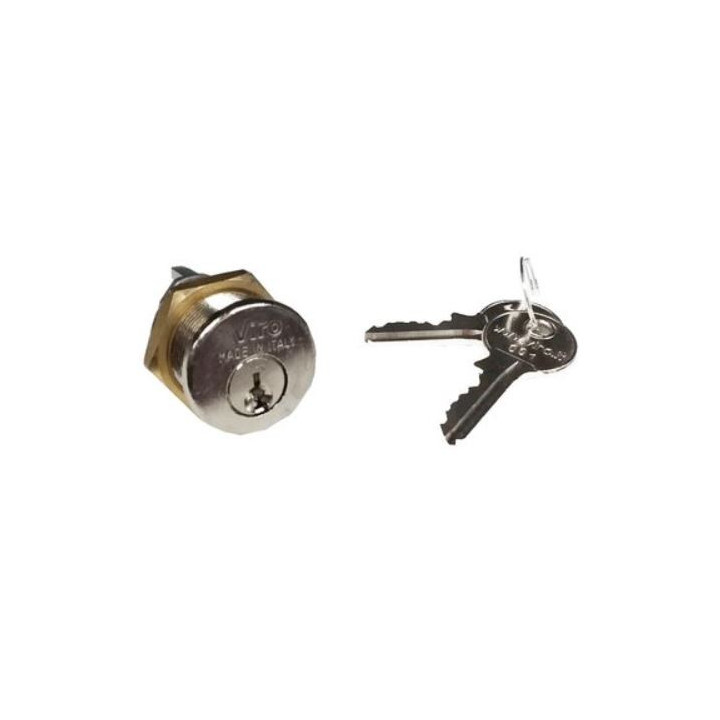

The 746 C packages include: a gearmotor with pinion and E781 electronic board, encoder for anti-crushing safety, limit switch magnets, release key, and cover covers.

With new retroactive motor control equipped with high-resolution encoder, 746 C offers smoother acceleration and deceleration ramps, force optimization, reduced energy consumption, and adjustable sensitivity to obstacle detection.

• Compatible with Simply Connect and the new FDS radio technology.
• Maximum sash weight 400 to 600 kg
• Maximum single leaf width 40-50 meters
• Maximum speed 9.6 - 12 minutes

Oil bath technology

• Silent movement. Oil bath technology offers a superior handling experience.
• Intensive use. The presence of oil ensures efficient heat dissipation and improves frequency of use.
• Extended life. The lubricating action of oil reduces friction between components, for reliable automation that rrequires little maintenance, with long life and high performance over time.

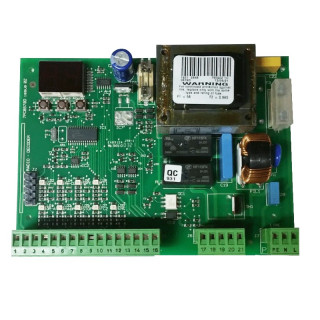

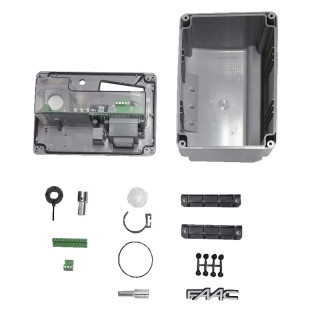

E781: New board, more compatibility

E781 integrates a wide range of technologies and innovations to maximize gearmotor compatibility with the FAAC universe.

Programming via display and pushbuttons, numerous configurable parameters, two independent inputs for safety edges and two programmable outputs.

Technical Characteristics - Sliding Gate Motor

Electrical and Mechanical Data

Performance and Applications

Environmental and Construction Characteristics

Specifications of the accessories in the Faac Practical Kit

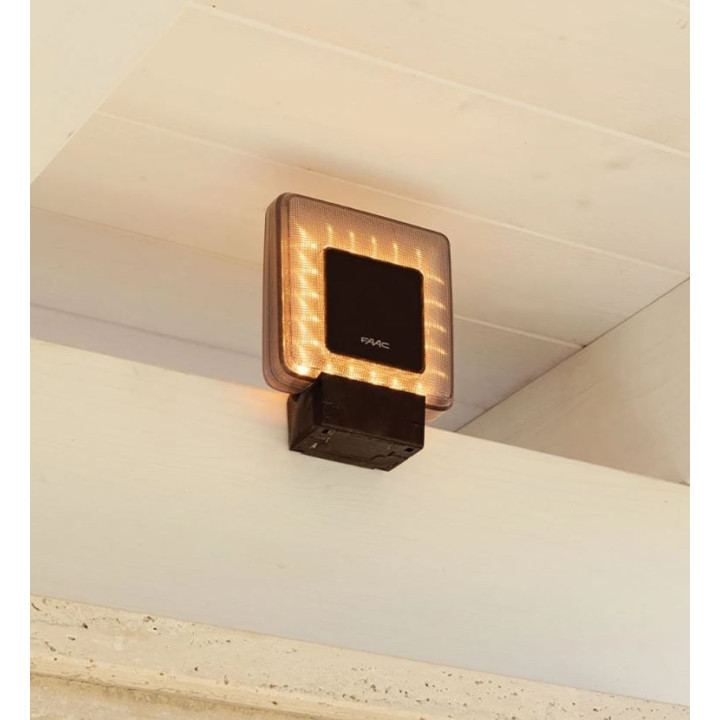

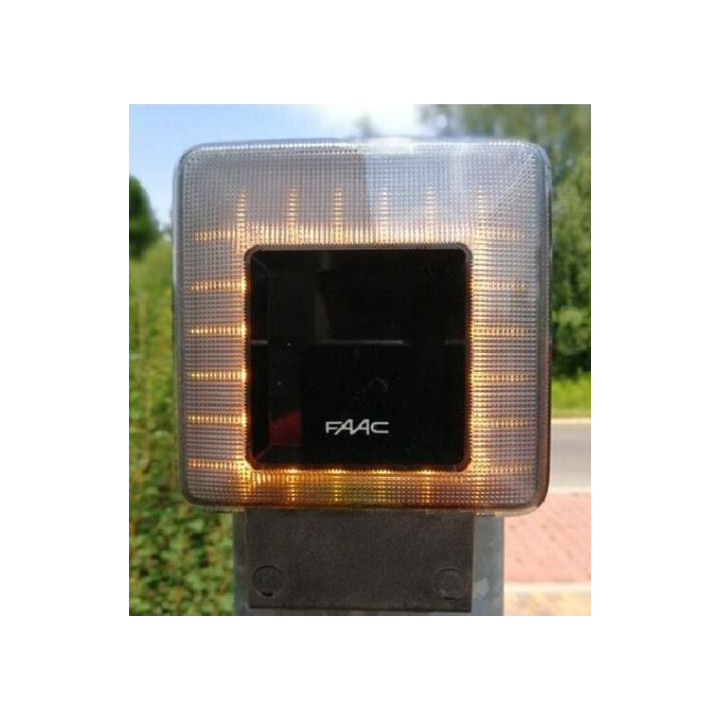

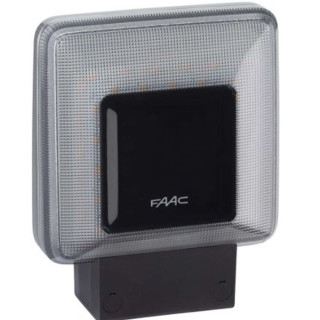

Faac XLED led flashing light 230-115-24V 410029

• Italian design suitable for any architectural context
• Equipped with 40 LEDs to ensure visibility even in broad daylight
• Only one version for power supply 24VDC, 230VAC, 115VAC
• Thanks to the integrated antenna, XLED is compatible with both 433Mhz and 868 Mhz frequency receivers
• Suitable for column or side-mounted installations
• Ambient operating temperature -20°C to +55°C
• Dimensions 135 x 55 x 165 mm
• Number of high-brightness LEDs 40
• Degree of protection IP 54

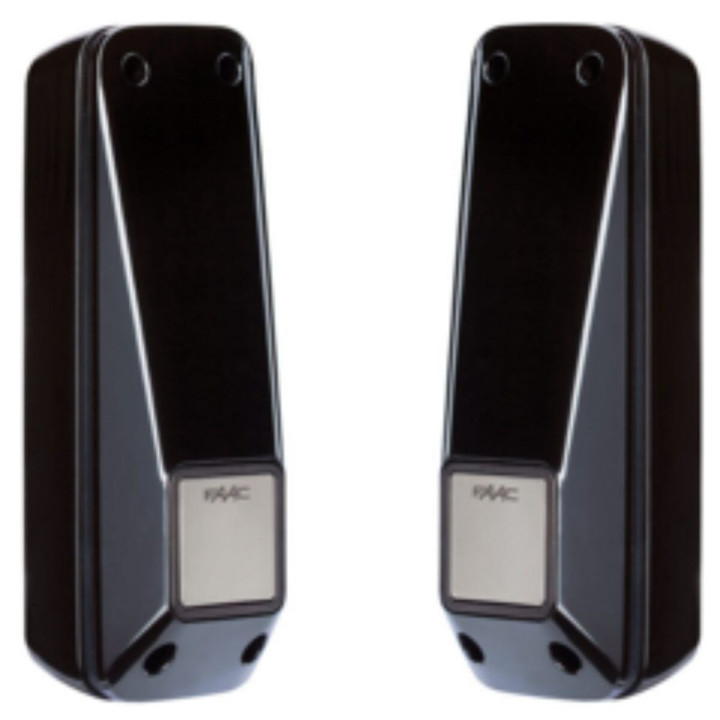

Faac XP20B D photocells wall-mounted bus 2-wire 24V distance 20m 785103

System with BUS 2easy power supply, only two 24V non-polarized wires, possibility to install up to 16 pairs of photocells on the same system and protection from interference produced by external light sources (e.g., automotive LED headlights).

• Power supply voltage BUS 2easy, 2 non-polarized wires 24V
• Wall installation type
• Self-alignment angle ± 7° (20m) ± 13.5° (5m)
• Dimensions (WxDxH) 41.5 x 42.5 x 130 mm
• Max photocell distance 20m
• Current consumption Rx (30 mA) + Tx (20 mA).

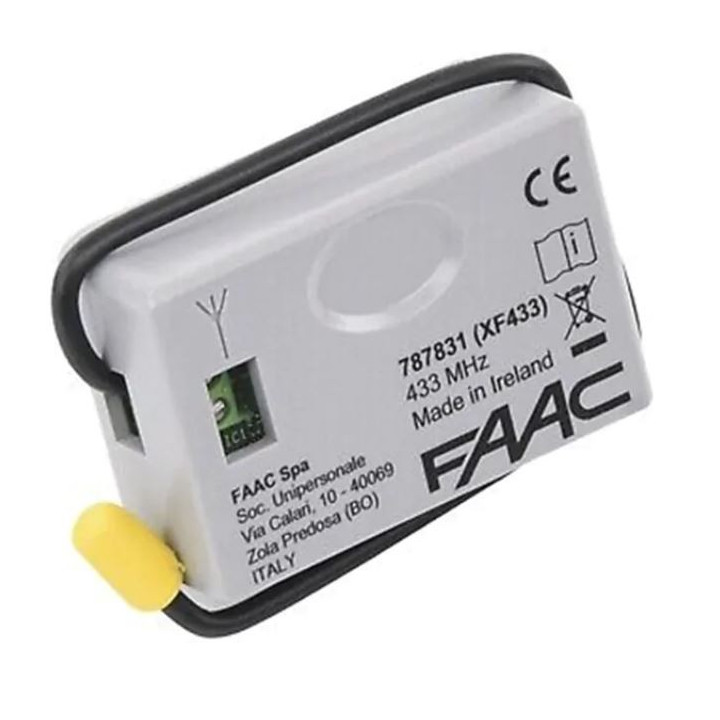

Faac XF receiver frequency 433 MHz 787831

Faac XF receiver, 433 MHz working frequency. Plug-in frequency module compatible with all Faac equipment equipped with OmniDEC universal decoding system.

The item replaces the XF 433 receiver code 319006.

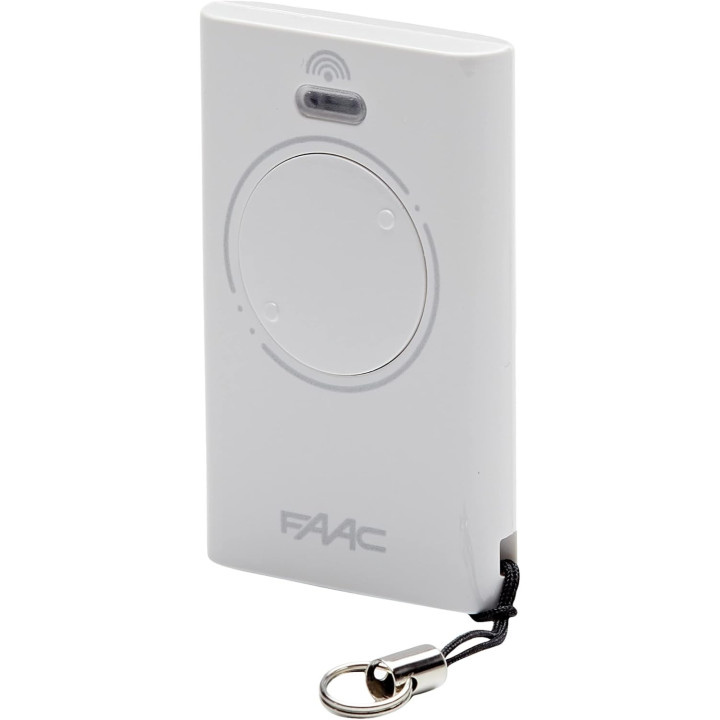

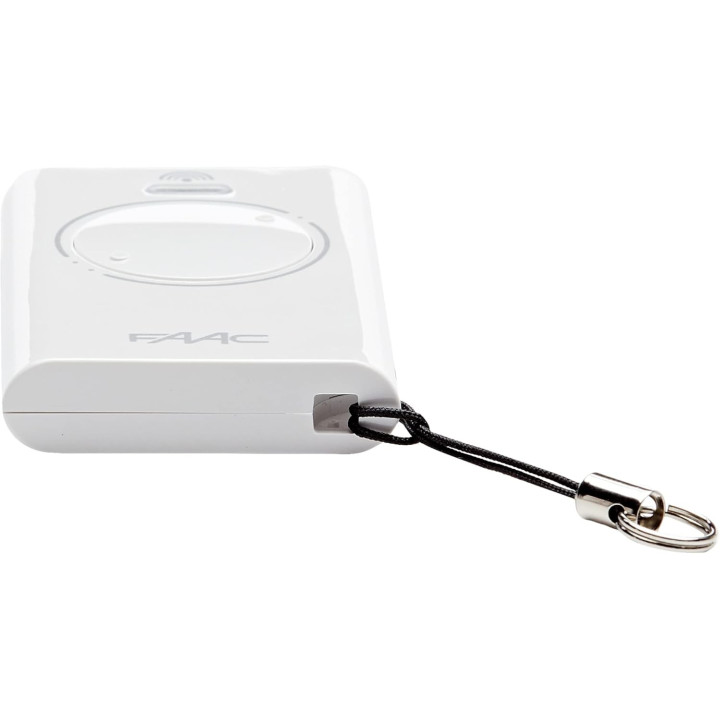

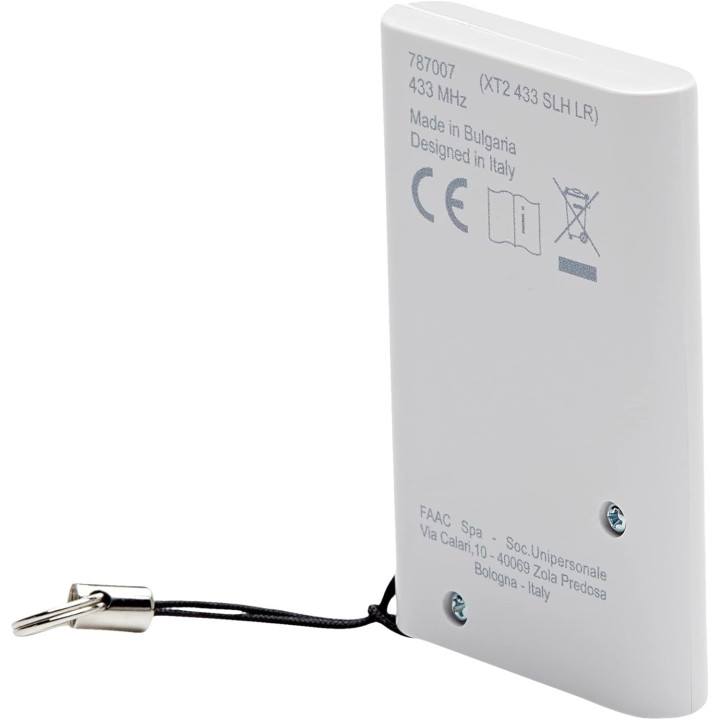

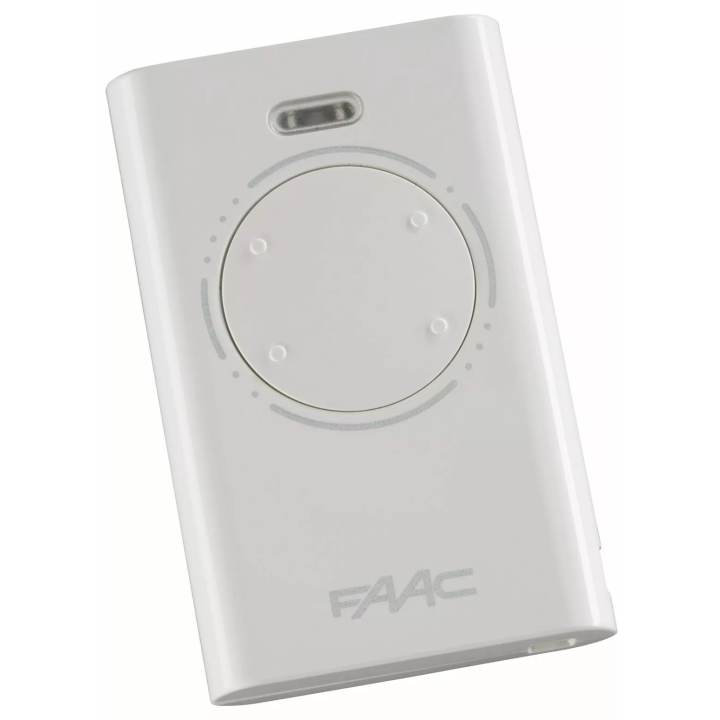

Faac remote control XT2 433.92 SLH 2-channel 787007

• SLH = SELF LEARNING HOPPING code: the code changes each time the transmitter is used. An algorithm recognizes and validates the signal only of transmitters encoded by the receiver.
• Advantages: cloning almost impossible. Possibility of replicating coded transmitters, even remotely from the receiver, with the patented SELF LEARNING system (transmitter to transmitter), simply by pressing keys according to an appropriate sequence.
• LR = LONG RANGE: Transmitters are able to cover almost twice the current distance thanks to an additional FAAC Patent on the electronics; the SLH LONG RANGE transmitter, each time the control buttons are pressed, in real time performs a sensing of the surrounding environment (e.g., hand position, presence of electrical noise, etc.) and automatically reconfigures the electronics maximizing, with each transmission, the radiated power. Fully compatible with previous SLHs.



Faac XT2 two-channel remote control, working frequency 433.92 MHz, white color, with coding type SLH LR technology. Specific control for automatic gates.

Powered by 2 lithium batteries 3V CR2032 already included.
